hey guys! my name is ac been on zilvia for a while now decided to make a build thread here I already got some on local forums and since im always here why not right?

anyway I used to drive this hunk-o-junk

my 2 fave shots before I painted it





then rattled it ha color is - rustoleum almond if you guys are wondering






new owners garage sold for 5500 i keep my wheels n seat

:cheers:

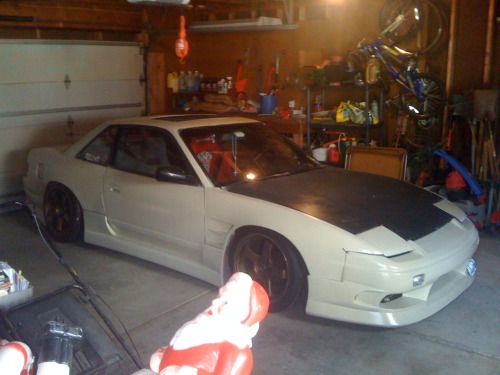

bought this off of my buddy









put my wheels and seat on BAM




mods as follow ( copied from his post )


89 coupe
Fresh Redtop SR and transmission
S15 T28 turbo
GReddy huge FMIC/piping
HKS wastegate actuator
GReddy Type S bov
3" downpipe with screamer pipe
Straight pipe to blast pipes (very loud)
ACT stage 3 clutch (6 puck unsprung)
Walbro 255 fuel pump
Megan links/coils etc
Front and rear strut tower bars
4pt harnesses
Old Sprint Steering wheel
6500k HIDs
Circuit Sports clear lenses on triple projectors
D-Max red/clear taillights
Aftermarket e-brake cable caliper bracket things
Welded diff
Origin Urban Line side skirts and rear bumper
Aero hood (unknown brand)
GTR grille
OEM Zenki front with pignose lip

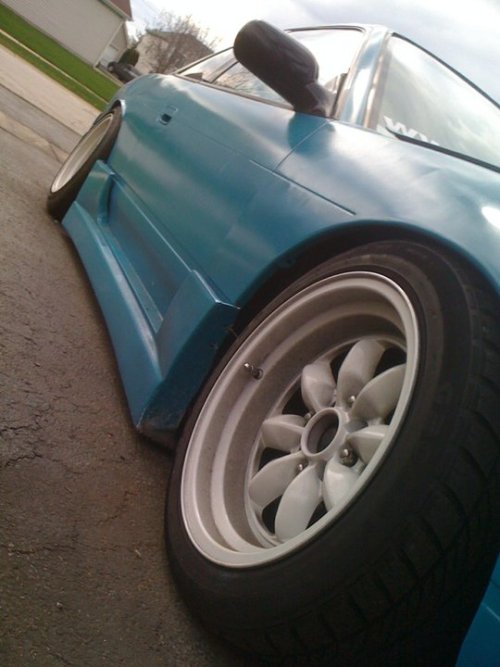

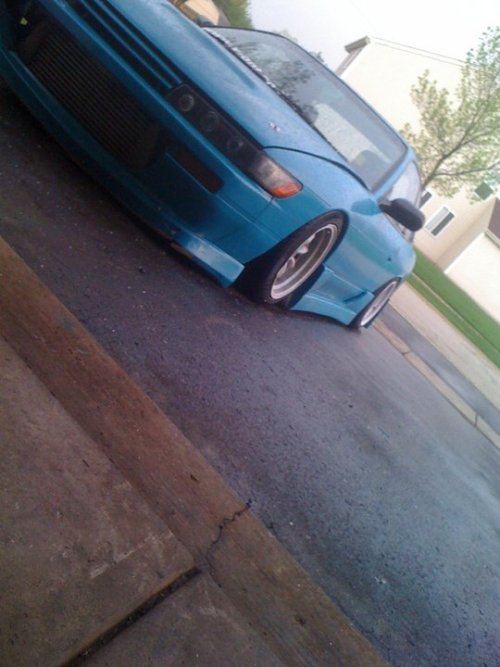

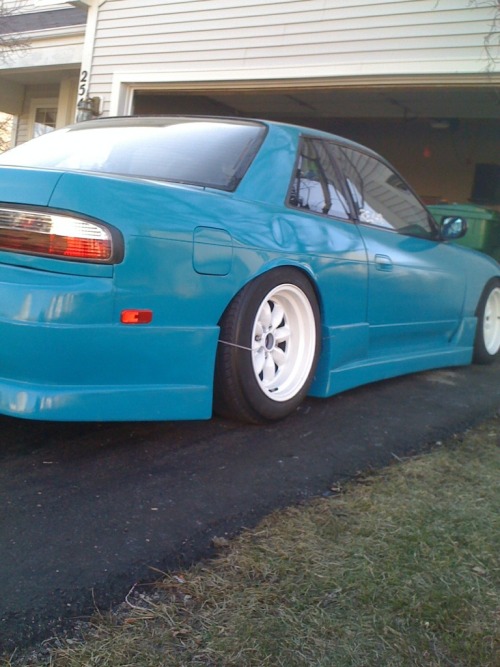

Painted the car this blueish green a few weeks ago. Looks like it's baby blue in pics, but it's actually more greenish.


later found out that the turbo was just a stock t-25, had a lot of electrical issues (kept on blowin injectors) and there was some rust nothing to crazy bov was a freddy the ic piping was ghetto coils were not megan they were emotors -.- I can go on and on but w.e thats what you get from trusting some one right? anyway

I later found it it was my friends old coupe "nackers" heres a link to the old build back in 06

http://www.cardomain.com/ride/485692...n-240sx/page-1

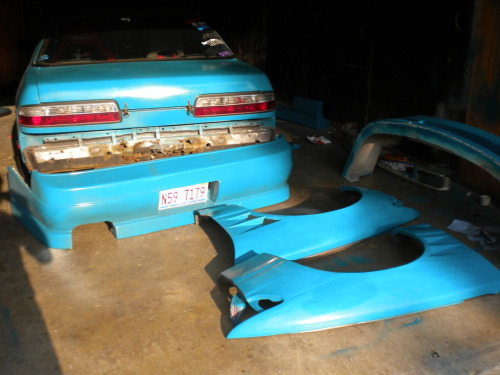

got rid of the stock metal fenders and the goofy bumper







bodykits n such









getting ready for wekfest got spacers n such see u at wekfest



some wekfest shots










turbo blew and i took everything off all the aero sold the seat currently the car looks like this

drftx

picked up a full s13 blacktop swap from my friend prolly used for less than 1 month he never got it running right ( we were still in high school i think it was just a wiring problem ) anyway got everything tranny/full motor/wiring harness ready to go just needed a turbo for 500! pretty much was rotting in his room for 4 years or so

I am currently in a engine building class at my school elgin community college






Today me and eric got started in tearing down the new sr I got for next season aside from there being A LOT of RTV and random bolts used and the broken timing chain cover the engine overall looks GREAT. Im pretty happy about it cyl walls look great the head looks fantastic. Im happy about the engine building class my teacher Mr. Norden is a great guy and knows his stuff. I cant wait to keep on building this but from the looks of it im going to need the right bolts for the most part im still re-searching on what cams and turbo I want to run next season

here's the block it self took off all the accessories and what not pretty clean







valve cover off the cyl head is pretty clean took off the cam caps and everything looks good and in order





Rocker arm's are off and as u can see the head is great and nice!! Cams off and shims are off I dropped one of the shims and I think its in the oil pan lol taking that off tomorrow









I LOVE THIS THING!! KEEPS EVERYTHING NICE AND ORGANIZED!!




I tried to get a good angle but the cyl walls look great no scoring or anything pretty happy about it






if you aint lazy and wanna skip to where im assembling the motor check out my blog

wtfitzac.blogspot.com

drftx

Kinda got a lot of work done today had couple of demo's from the teacher that I already know. But had to kind wasted a hours time for the tear down but whatever got lower oil pan off and the upper oil pan the previous owner used a lot and I mean A LOT of RTV there was a freaking mountain of it I got a picture of it. I found a piece of metal idk what it is till I get to the block it self and tearing that apart but on to the pics





The lower oil pan bolt removal sequence inward to out ward starting in the middle towards the back of the engine, Here you can see that there is a lot of RTV used and we found sludge in the lower oil pan -.- and a piece of metal idk what it was or where its from but I will find out soon



pretty clean except for some sludge





here is that metal chunk idk if you guys can see it found it in the lower oil pan







upper oil pan off and the baffle plate is also off u can see more sludge and RTV EVERYWHERE mountains of it there is a bolt sequence on how to take off the lower oil pan also its outward bolts to in ward in pairs



A little rtv mountain I made lol



Got most of the rtv off from the block and the upper oil pan started running out of time tomorrow taking off the harmonic balancer and the timing chain cover and timing chain



Everything nice and separated and labeled



Eric went to town on the upper oil pan in the solvent tank lol

thats it for today!
