2jz swapping my clean kouki after 16 years


After 16 years of ownership I did finally decide to bite the bullet. My car is a very good example of an s-chassis and the one thing that always kind of let it down was the engine bay- granted it was a pretty good KA-T setup, just tired and not up to par with the rest of the car. It was time for something else. A single turbo 2jz setup with paint matched bay and quality components should really help with that. Anyone who's been on here a while has probably seen pictures of my car "before", but here's a little refresher.

https://i.imgur.com/5RGewee.jpg
https://i.imgur.com/1ahTCBj.jpg
https://i.imgur.com/CP2S9QT.jpg

So I'm a pretty good ways into the swap at this point. The goal is to use quality parts and fabricate what I could myself- the intercooler, exhaust, charge pipes, etc. The engine is a jdm non vvti, stock internals, freshened up with studs and HG, BC 264 cams springs and retainers, new waterpump and timing components. Stock r154 trans, light flywheel, aluminum DS. Here's a few photos of the engine tear down and refresh. The engine covers will be painted closer to the end.

https://i.imgur.com/dNpZP83.jpg
https://i.imgur.com/cbR56Oj.jpg
https://i.imgur.com/ImAVmIQ.jpg
https://i.imgur.com/pnhosRE.jpg
https://i.imgur.com/4eK95XU.jpg
https://i.imgur.com/zd28Cwu.jpg
https://i.imgur.com/qi4lNKY.jpg
https://i.imgur.com/qTWs83A.jpg
https://i.imgur.com/foQF6zp.jpg
https://i.imgur.com/LyhqHBv.jpg
https://i.imgur.com/1sVpTYe.jpg
https://i.imgur.com/W7EMiv4.jpg
made a water rail without all the unnecessary nipples

pulled the ka
https://i.imgur.com/BvRpMzk.jpg
https://i.imgur.com/rBMkUuL.jpg

Next, I mock up the tucked radiator/condenser/IC core and trim a few areas, as well as patch the battery tray and corresponding area behind the DS headlight.
https://i.imgur.com/6ik98fL.jpg
https://i.imgur.com/2tkWQtz.jpg
https://i.imgur.com/f1SmCPA.jpg
https://i.imgur.com/lJzo4UM.jpg
https://i.imgur.com/zlf1OWi.jpg
https://i.imgur.com/xldZGzt.jpg
https://i.imgur.com/dZeMWHP.jpg
https://i.imgur.com/sDMJwm5.jpg
https://i.imgur.com/cWoXmVW.jpg
https://i.imgur.com/6FjJoEl.jpg
https://i.imgur.com/hssyPPf.jpg
https://i.imgur.com/g460p1E.jpg

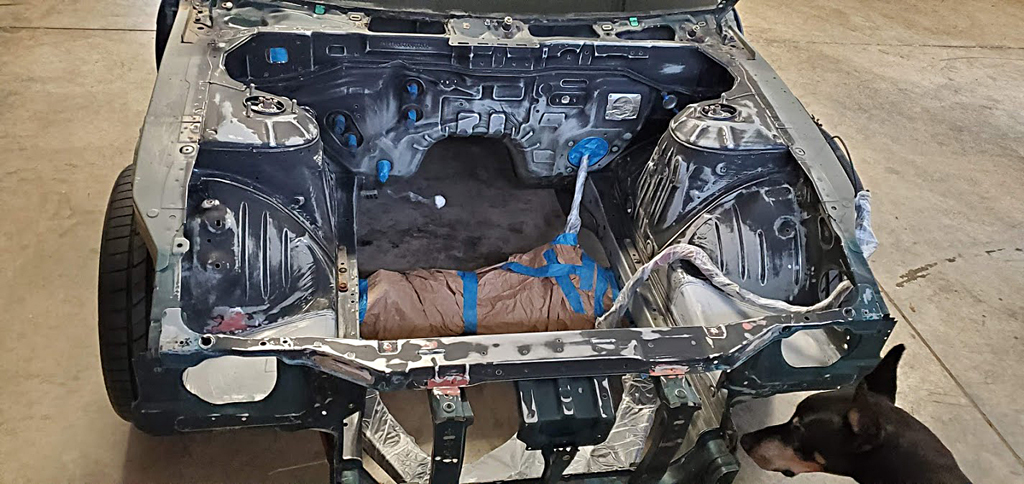

Up next painting the bay and dropping it in. Sorry if some of the vertical images are huge- trying to fix that.

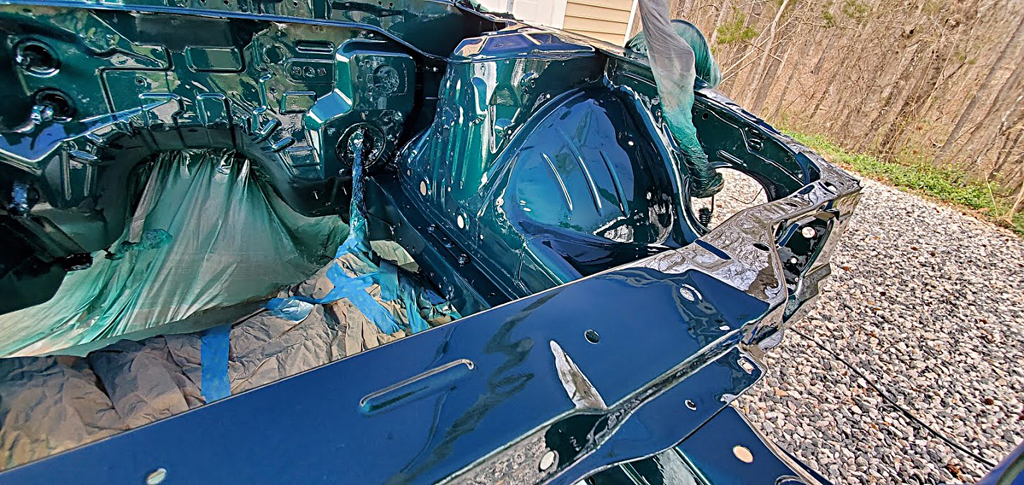

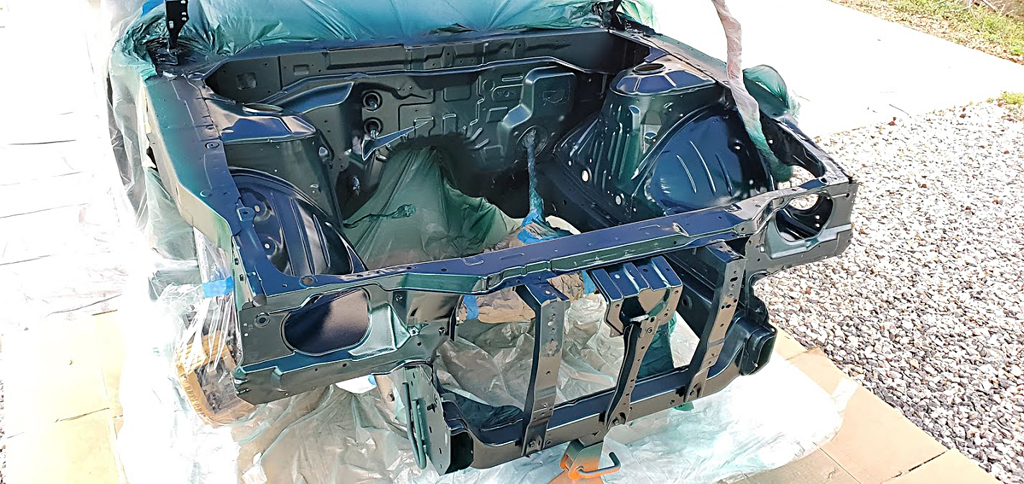

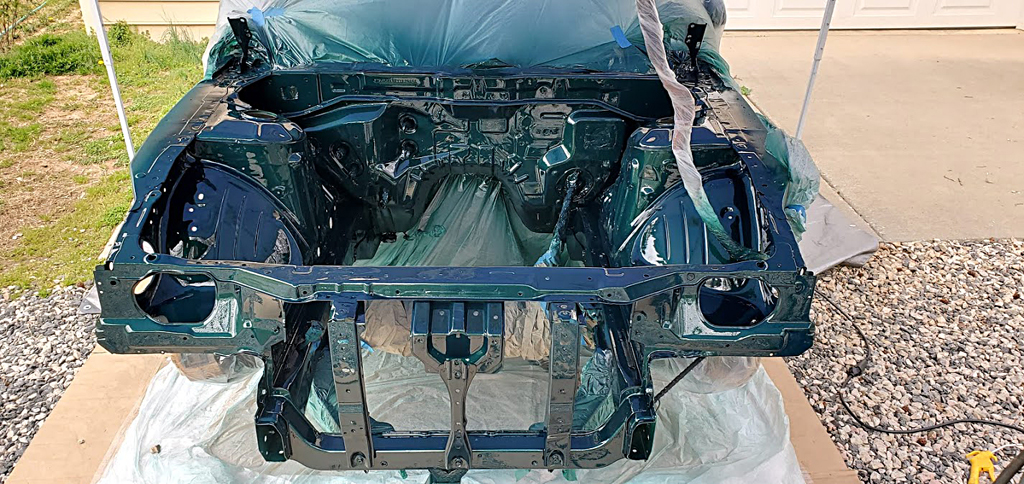

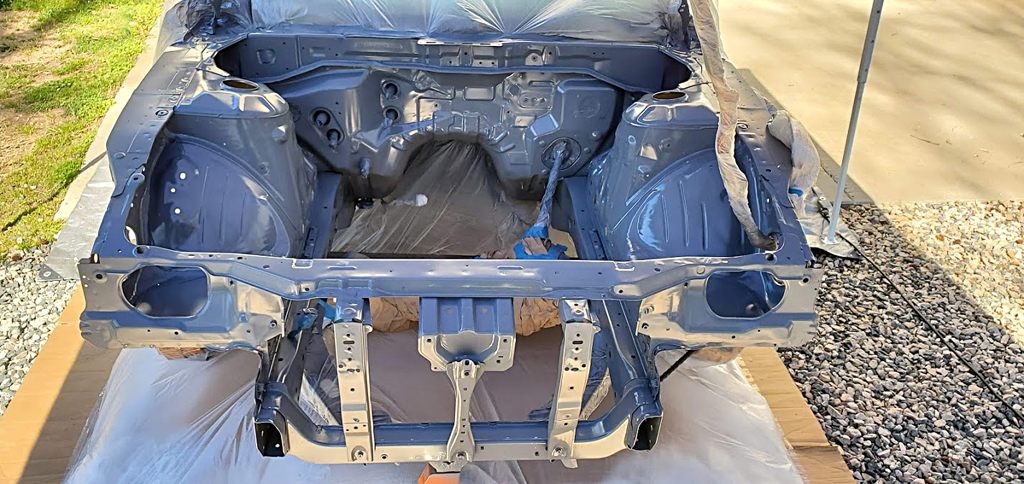

Originally I had planned to paint the bay gloss black since I may end up changing the color of the car in years to come, but after some deliberation green would really just look way better so green it is.

https://i.imgur.com/WTs0X0x.jpg
https://i.imgur.com/p44uH8l.jpg
https://i.imgur.com/MreBr5K.jpg
https://i.imgur.com/s4aLVVe.jpg
https://i.imgur.com/Rl9wrVF.jpg
https://i.imgur.com/blEmDHS.jpg

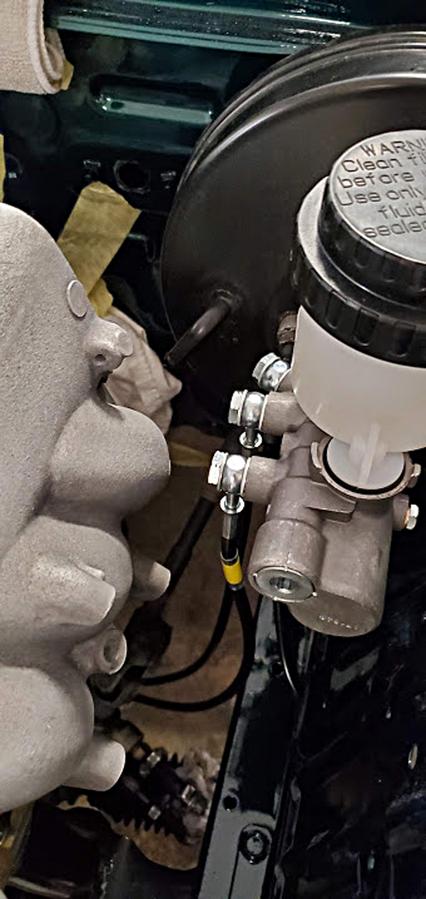

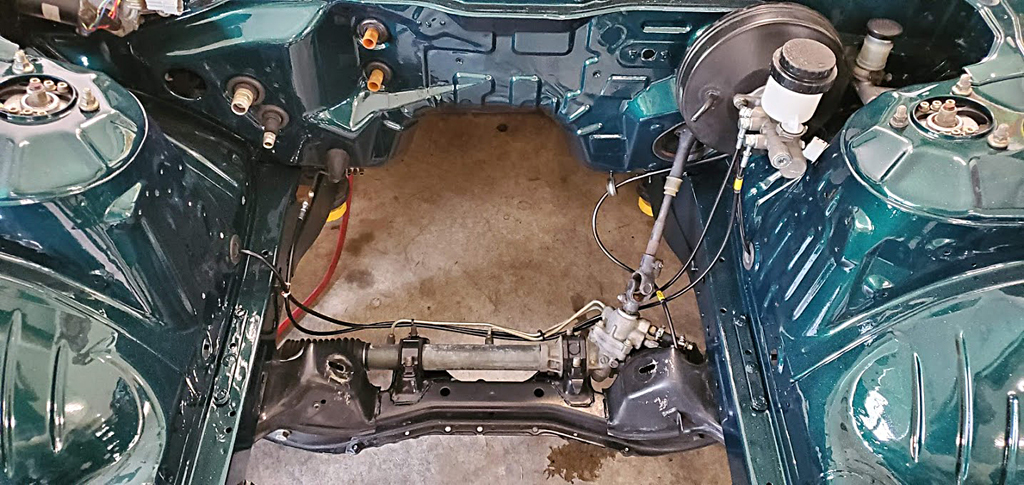

With clearance of the intake manifold being a known issue I installed chasebays lines and a new z32 master, plus they just look way better.

Looks good but you should've hammered out some clearance on the transmission tunnel before paint. Now you're going to end up hammering fresh paint. Ask me how I know. :cry:

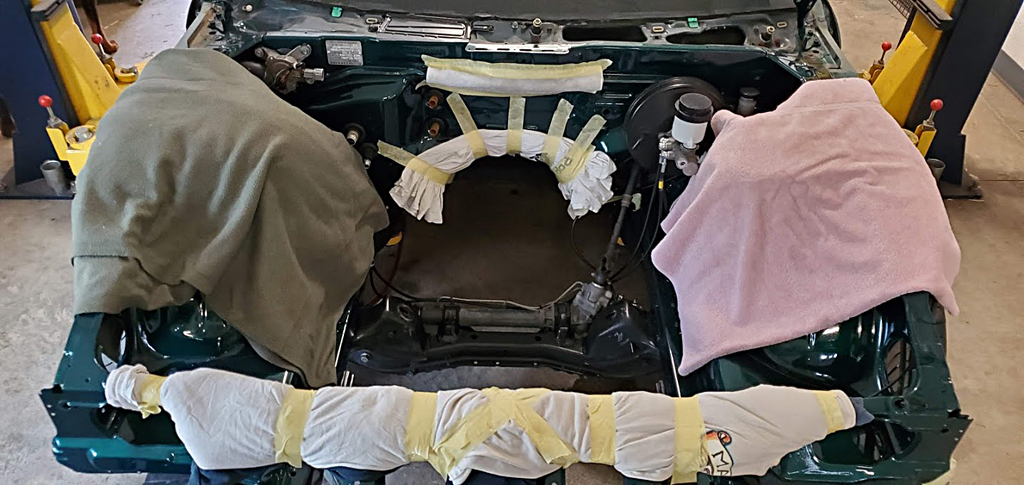

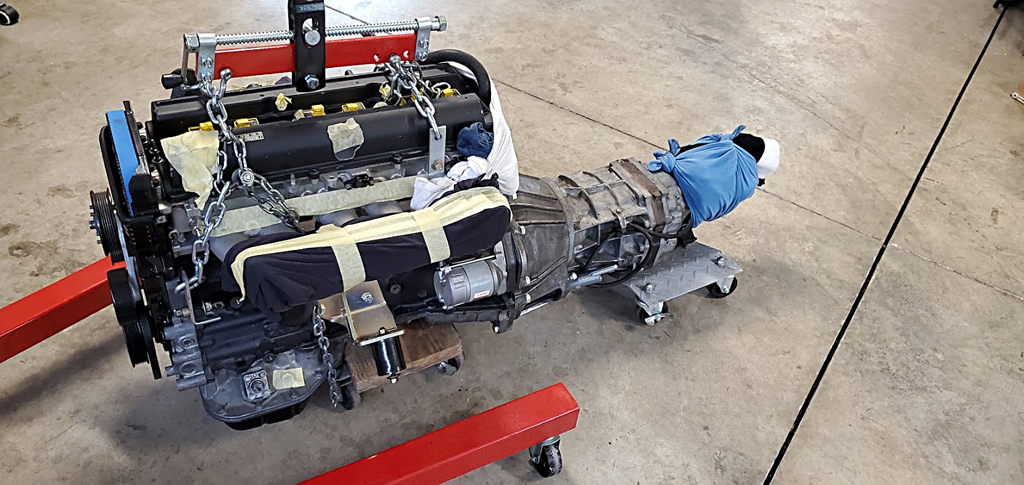

Maybe I’m way too anal, but I padded the hell out of everything in preparation to setting the engine in.
https://i.imgur.com/zM9tZoB.jpg
https://i.imgur.com/270ot3F.jpg

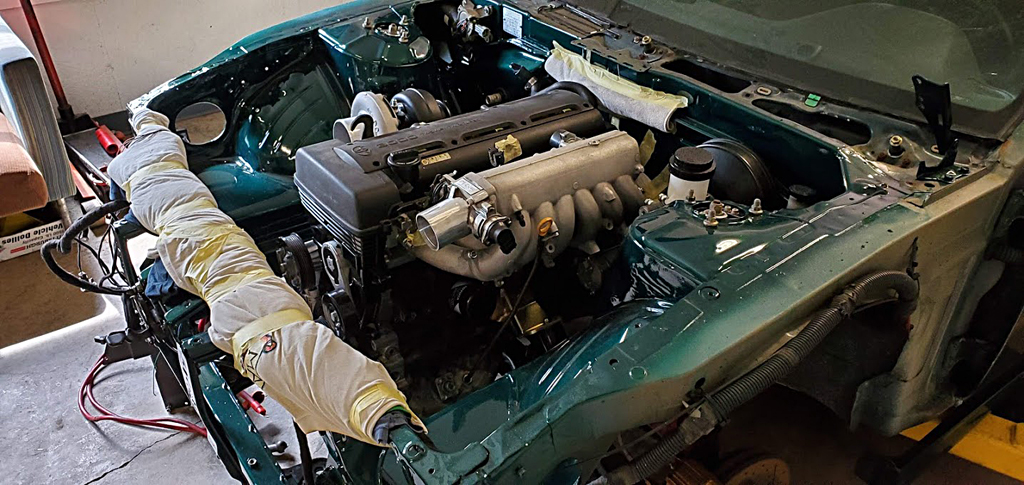

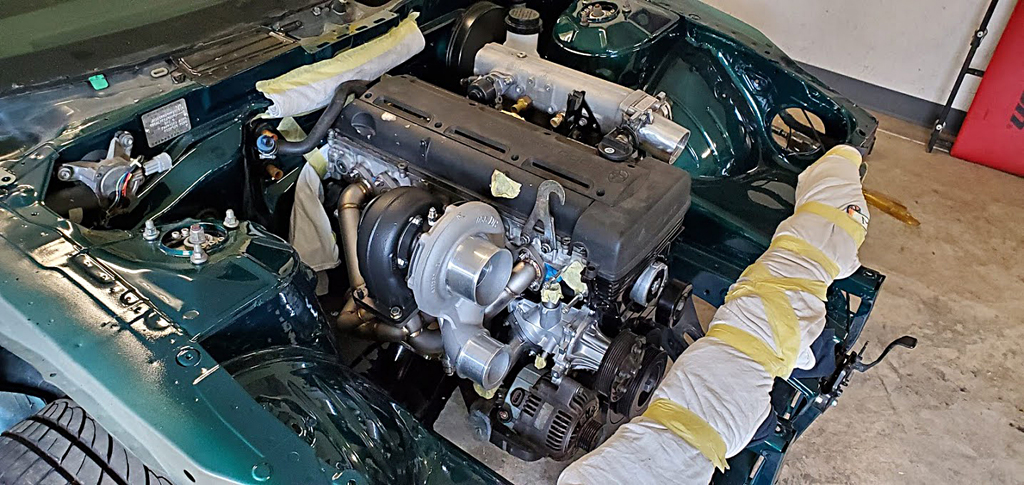

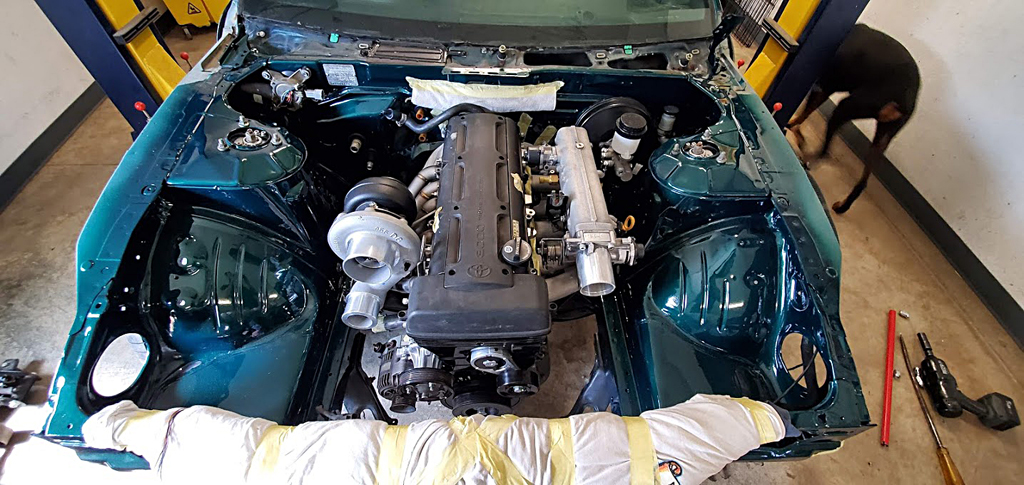

Success!
https://i.imgur.com/qzXdq2I.jpg
https://i.imgur.com/MmKNz2D.jpg
https://i.imgur.com/GDEmRi3.jpg
https://i.imgur.com/hiVbZBu.jpg
https://i.imgur.com/jK6f0XO.jpg
https://i.imgur.com/jNKMjeM.jpg
https://i.imgur.com/y9g7w9f.jpg

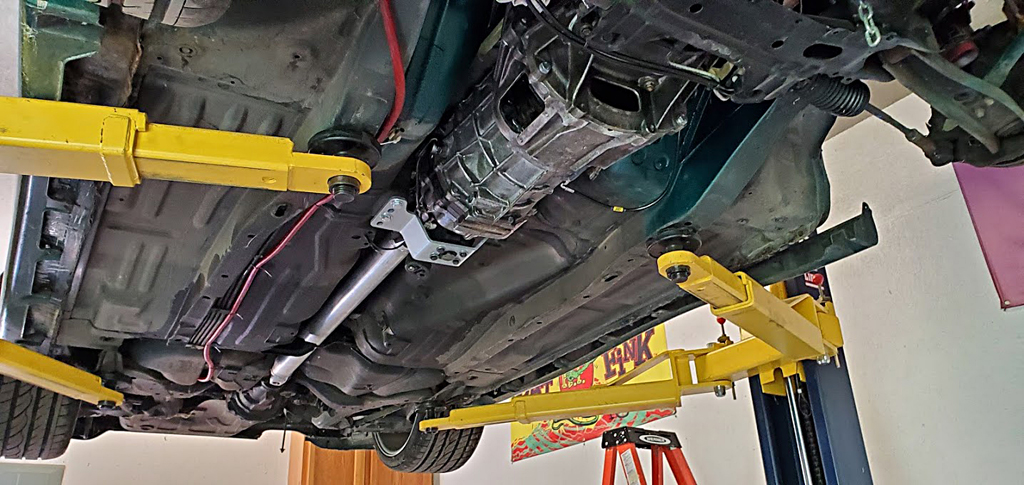

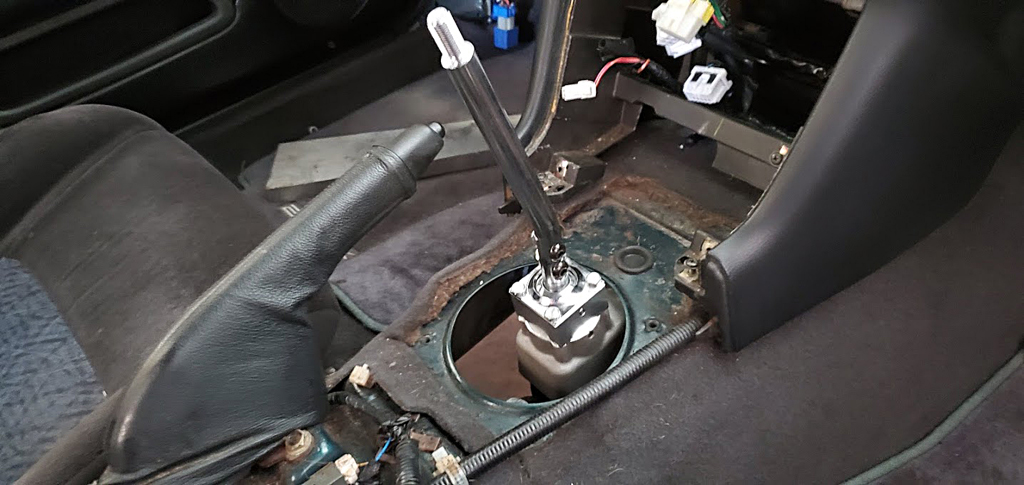

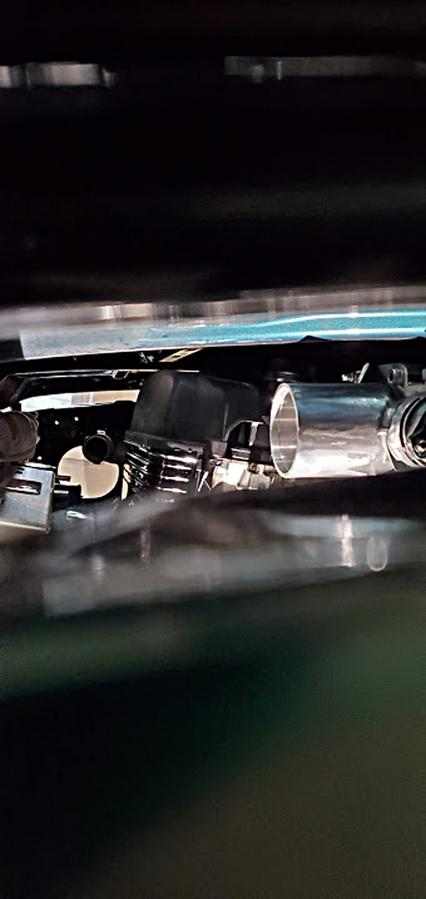

The excessive extended shifter housing still didn’t land the shifter exactly where I’d like it but it’s good enough- You’d think with the same company’s mounts and everything it would be a little more on point but it’s not. The engine could go back further IF I modified the trans mount, which I really don’t care to do. The upside is I have plenty of hood clearance and the extra room between the bell housing and tunnel makes it nice if and when I have starter problems.

Thankfully I was good, have decent clearance everywhere. Maybe the mounts I have make the engine sit lower? It's definitely further forward than most people do too.

Beautiful car and build!

In for this build!!

Following along. Clean car ��

wow impressive bro. been following you since and great choice of motor swap

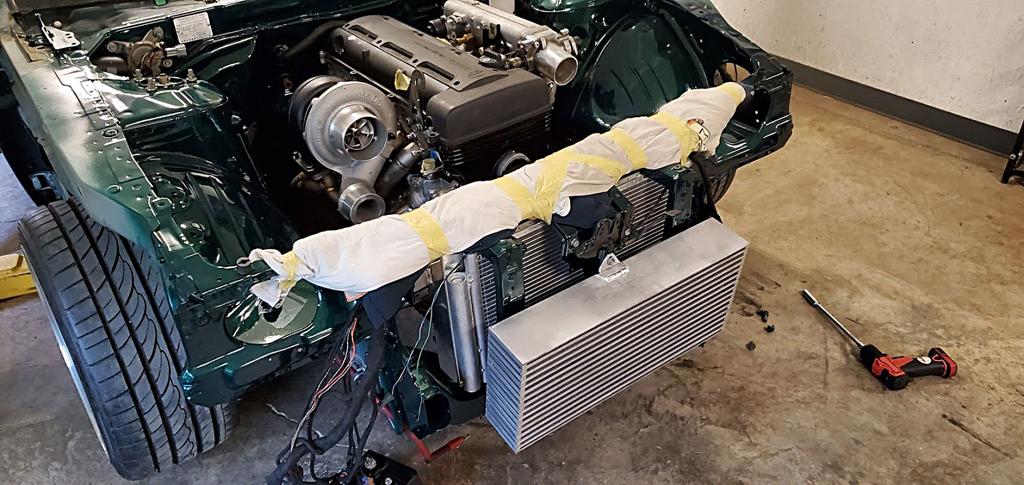

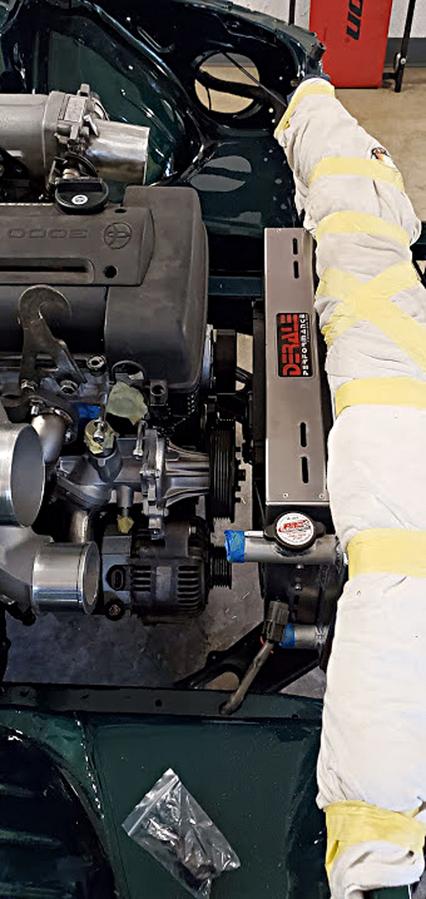

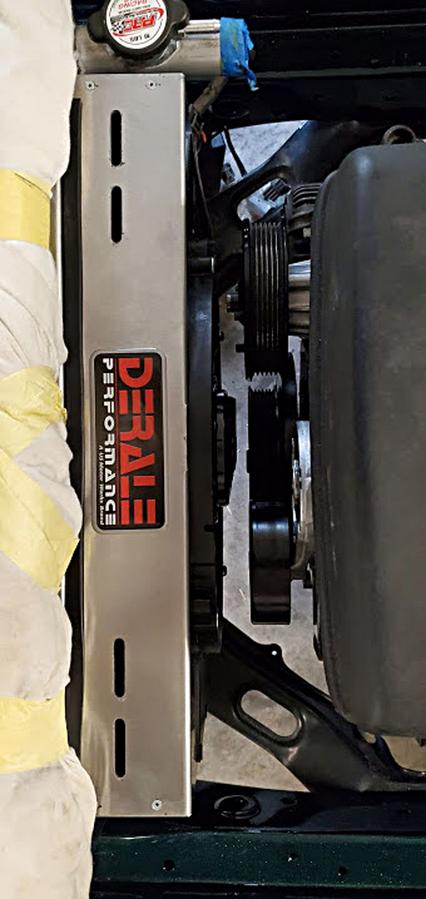

Mounting the radiator, intercooler, and condenser. I know the Derale shroud is massively thick, but even so there is enough clearance to service the drive belt after it is installed. I want to be sure this thing stays cool. Cooling problems are always caused by people using cheap single pass radiators and mediocre fans.

https://i.imgur.com/03bcGDm.jpg
https://i.imgur.com/DZwZA8a.jpg?1
https://i.imgur.com/65M1OBG.jpg

^^ what are the radiator specs, thanks.

Radiator from PRC 23x13" and 3" thick, dual pass

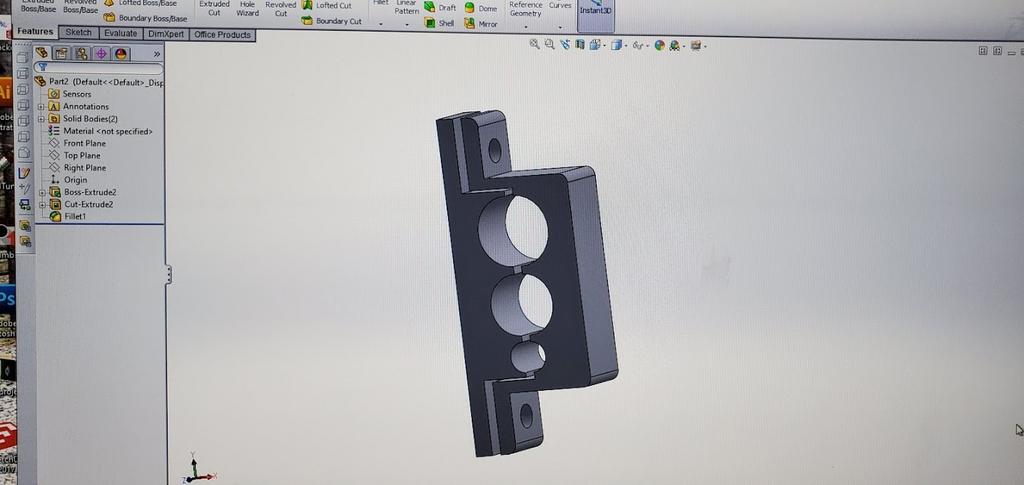

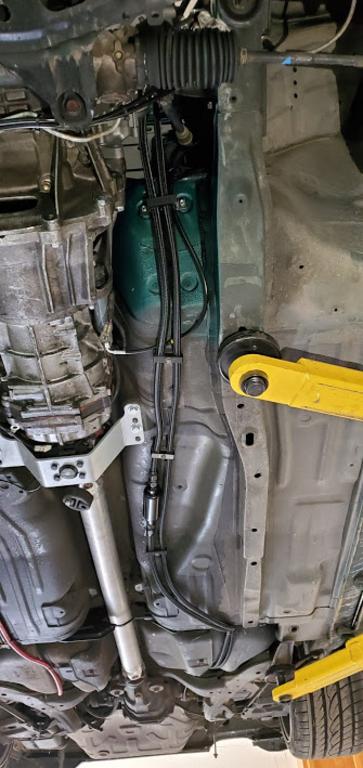

Next I built a new fuel system. You saw in a previous photo I am using a radium rail and ID 1050x injectors. I installed a walbro single 525 in the tank along with 8an and 6an bulkhead fittings into the factory bulkhead (not pictured). I ran the lines on the drivers side and 3d printed some brackets to hold the lines and inline filter up nice and tidy. Pictured is another bracket I designed to hold the fuel and clutch line where they come up into the engine bay where a factory heat shield originally bolted.
https://i.imgur.com/x9x3yqF.jpg
https://i.imgur.com/Ws1unSY.jpg
https://i.imgur.com/BFMUc3X.jpg

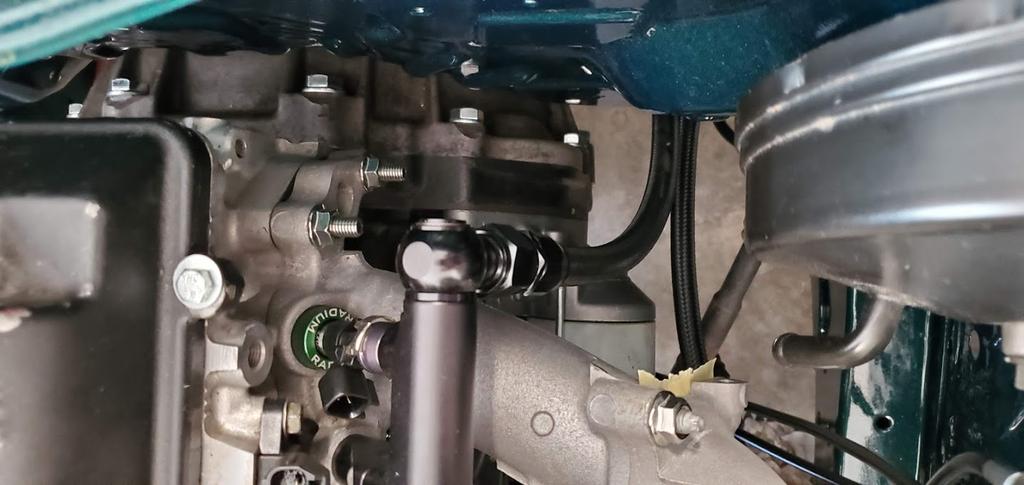

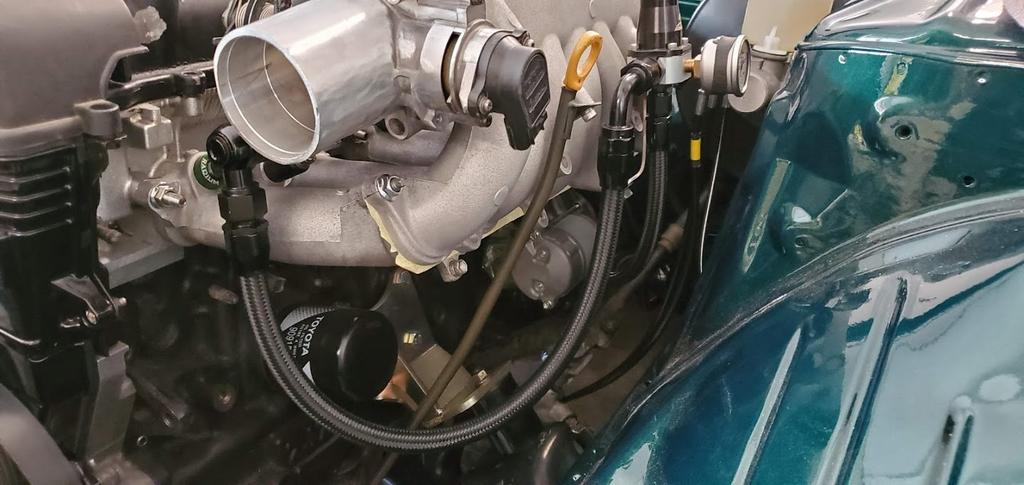

Feed right off the back of the rail with a 8an banjo fitting
https://i.imgur.com/l0koeJ1.jpg
return off the front of the rail to the FPR- I?m not completely satisfied with this routing and I may change it.

what is the spec on that condenser and what engine and trans u mount thanks ? loving this build

I have always been a huge fan of your car man! Love the stock styling and cleanlyness of it. Can't wait to see the finished product once the swap is complete!
Cameron

Looking good. Cant wait to see final results

Thanks y'all. Not sure on the condenser, I figured it out so long ago and don't have the box anymore. It's a generic one with integrated drier, approximately the size of the radiator (23x13)

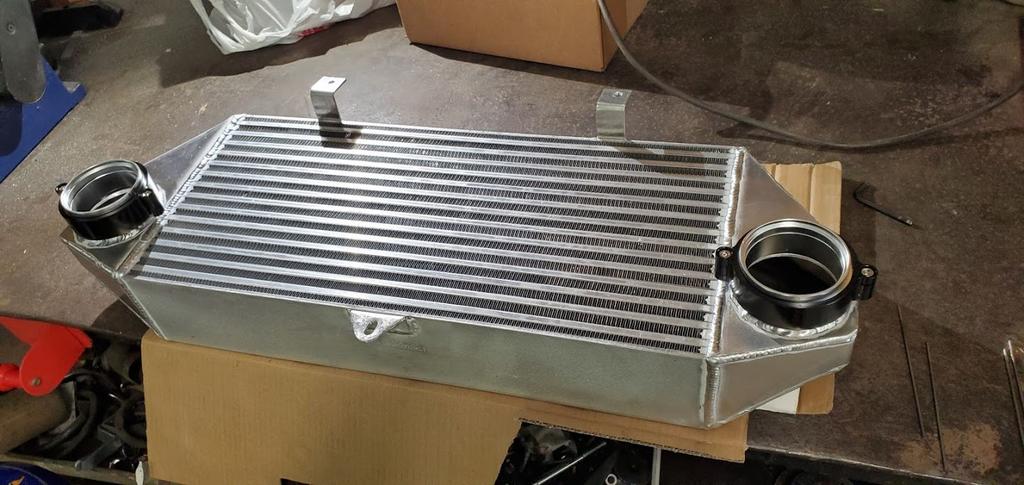

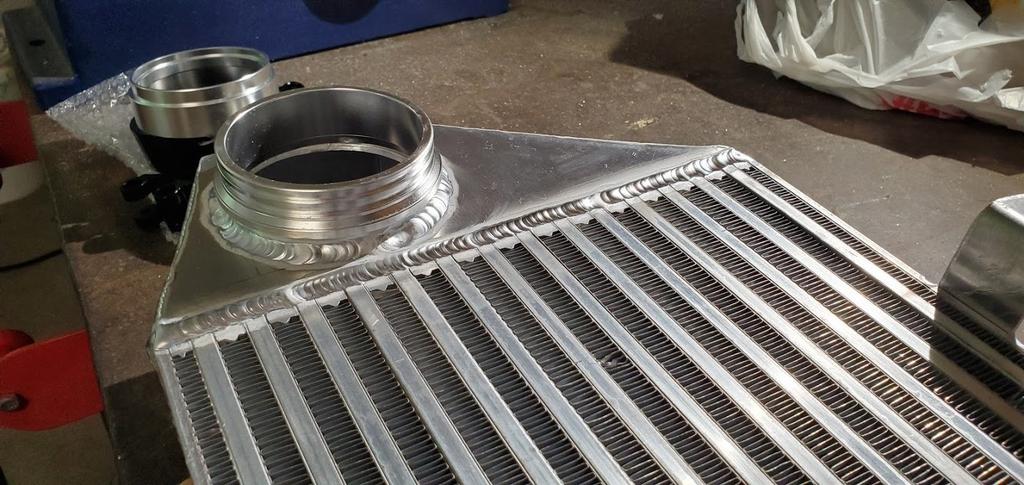

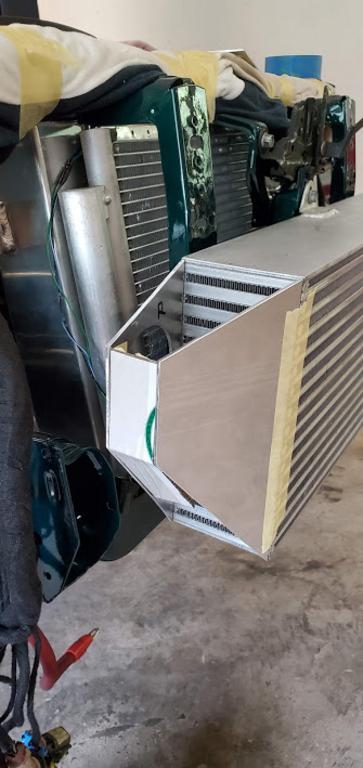

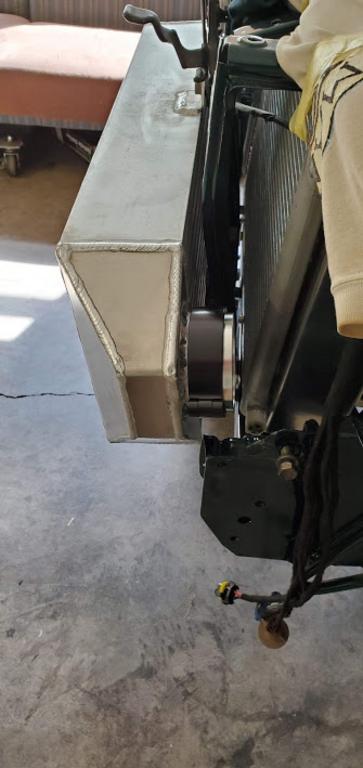

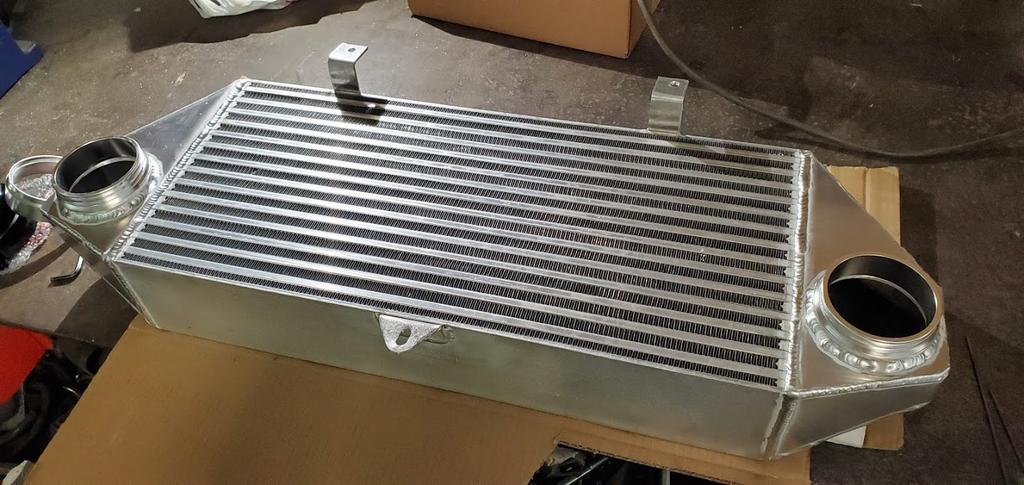

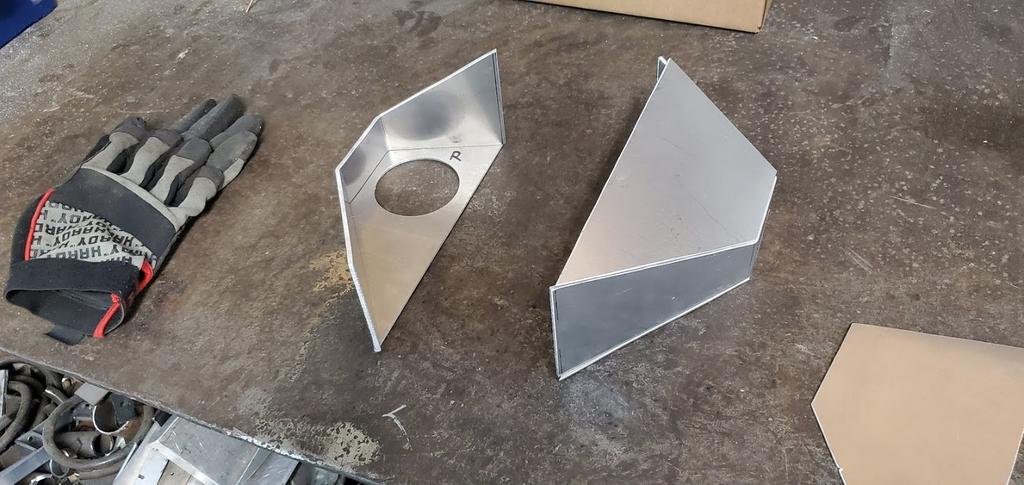

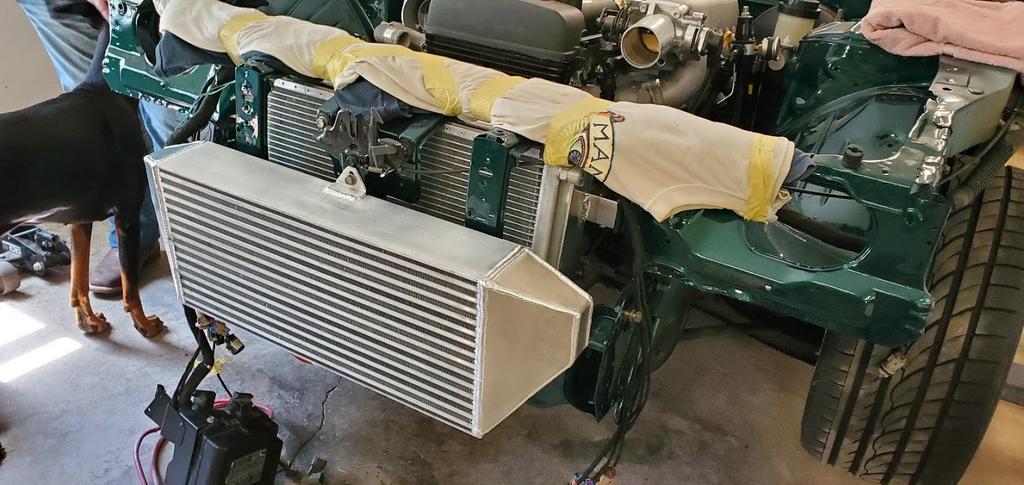

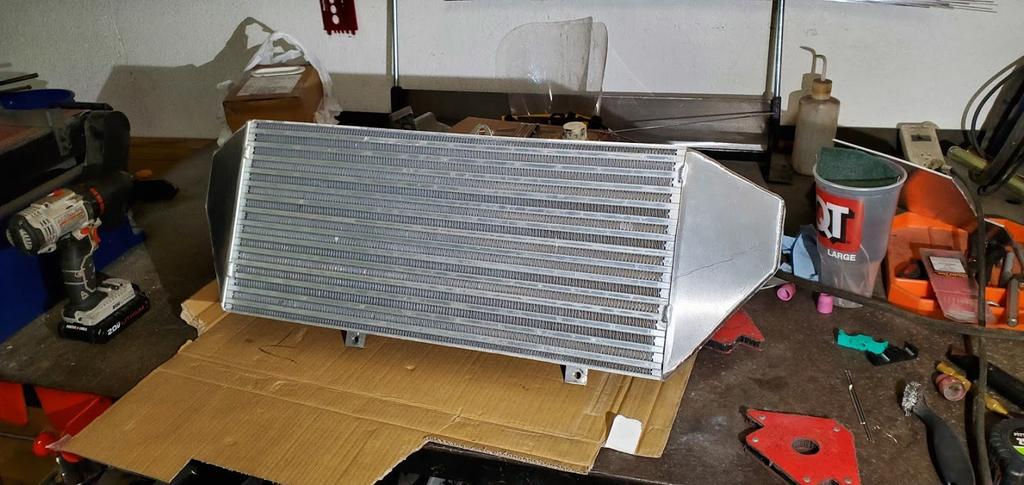

Here?s about where we?re caught up, building the intercooler and charge pipes. It?s pretty straight forward so I will let the pictures explain everything. I haven?t seen many people do a back door intercooler setup on s-chassis, but It?s so neat and tidy, and with the narrower radiator I am able to go that route. The o ring?d male/female ferrules and clamps dress it up over standard silicone couplers and are hopefully less likely to leak.

https://i.imgur.com/ElJvU7M.jpg
https://i.imgur.com/kgJcN4H.jpg
https://i.imgur.com/oR9lUTq.jpg
https://i.imgur.com/qBhxeqT.jpg
https://i.imgur.com/HXtmtDL.jpg
https://i.imgur.com/EKqSlbo.jpg
https://i.imgur.com/mRkm5Qn.jpg
https://i.imgur.com/M8XfRXD.jpg?2

Looking good so far.

I've seriously contemplated ditching my KA-T in favor of something smoother and better sounding, like a JZ. I'm interested in seeing how you will compare the two setups when it's all done.

I'm happy you already stated the engine covers are getting painted closer to the end. Everything is way to nice for them in their current state. Keep it up!. This build is awesome

Shit this is rad. Dude over here making his own intercooler. Assuming you are going to maintain ac and heat with this beaut?

Subscribed for more car porn

Wow man looks great. Keep it up

Thanks! Yeah the plan is to have heat & a/c and I plan to do an electric power steering conversion as well.

Spencer, Nice to see you've held onto it for so long and it still in very good shape
Enjoying the current refresh and upgrades

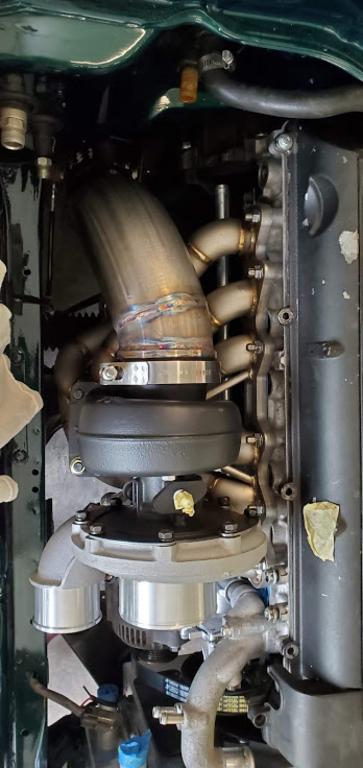

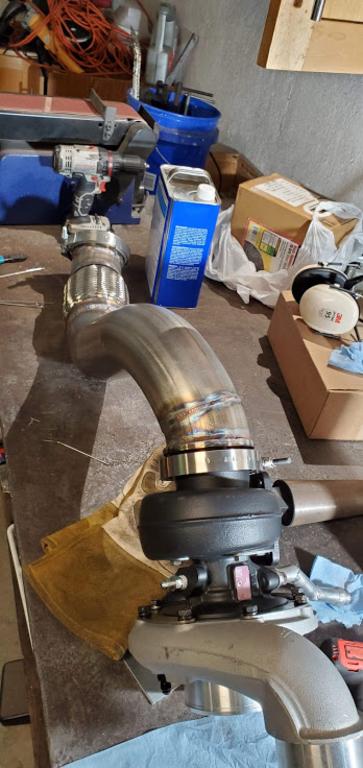

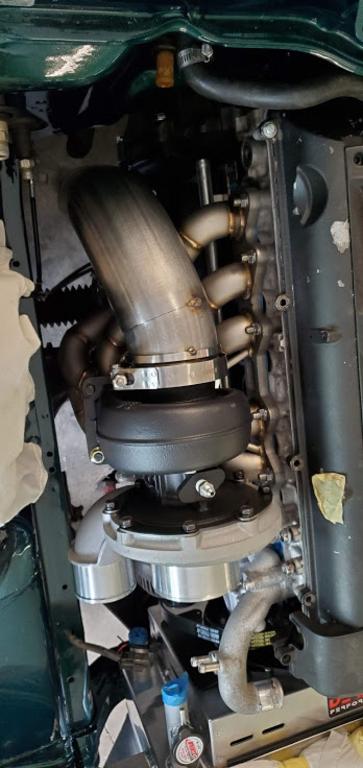

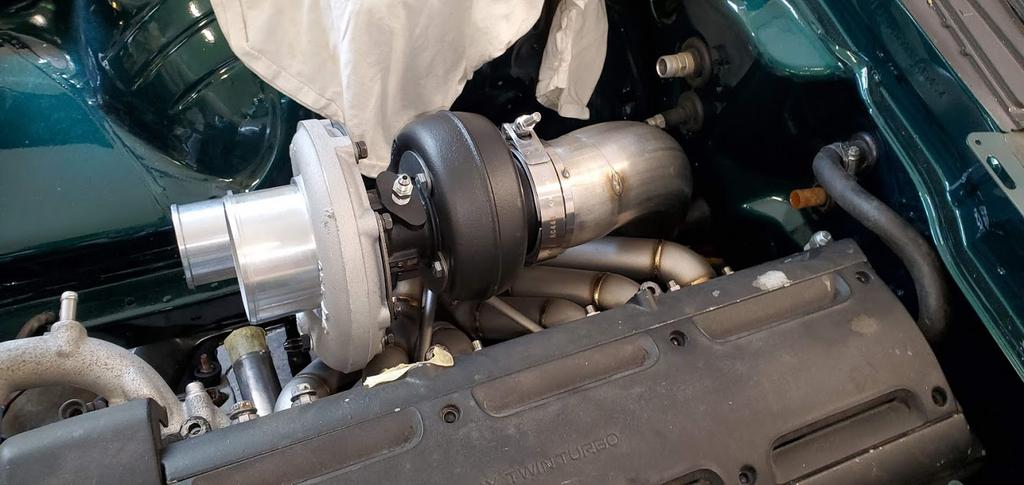

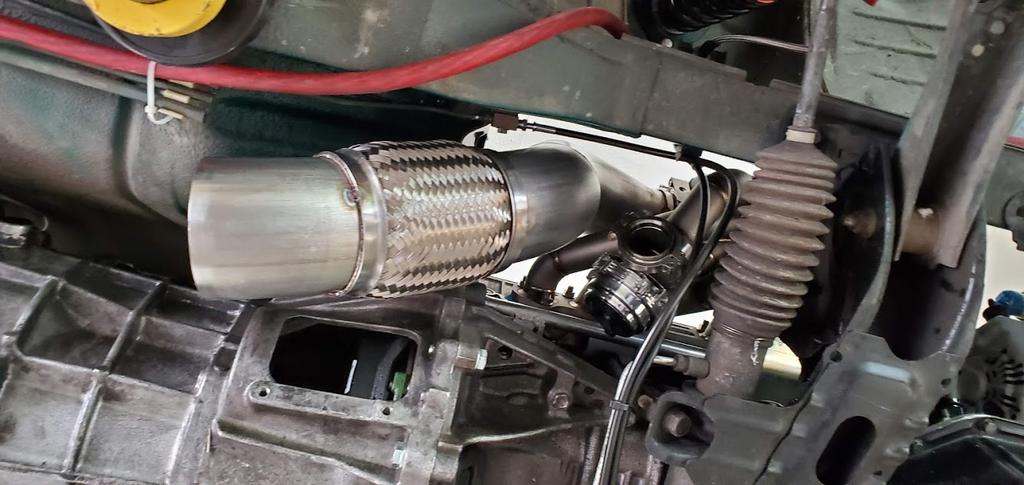

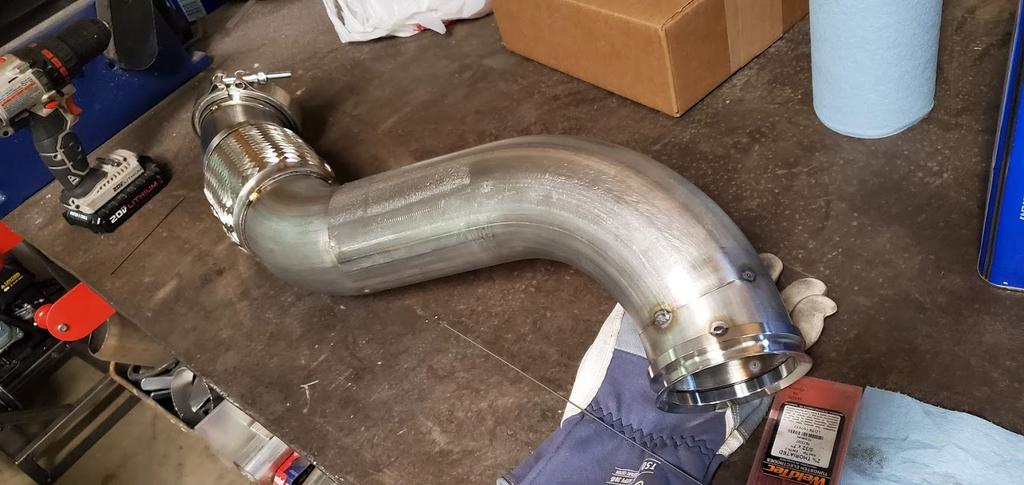

Building the downpipe. I will be recirc'ing the WG dump tube back into the downpipe but I need to let that marinate in my head to find the best routing for that.
https://i.imgur.com/GaEwics.jpg
https://i.imgur.com/XakppNv.jpg
https://i.imgur.com/HjVh9qH.jpg
https://i.imgur.com/Oqzimjs.jpg
https://i.imgur.com/1W57Jct.jpg
https://i.imgur.com/2flq0fy.jpg

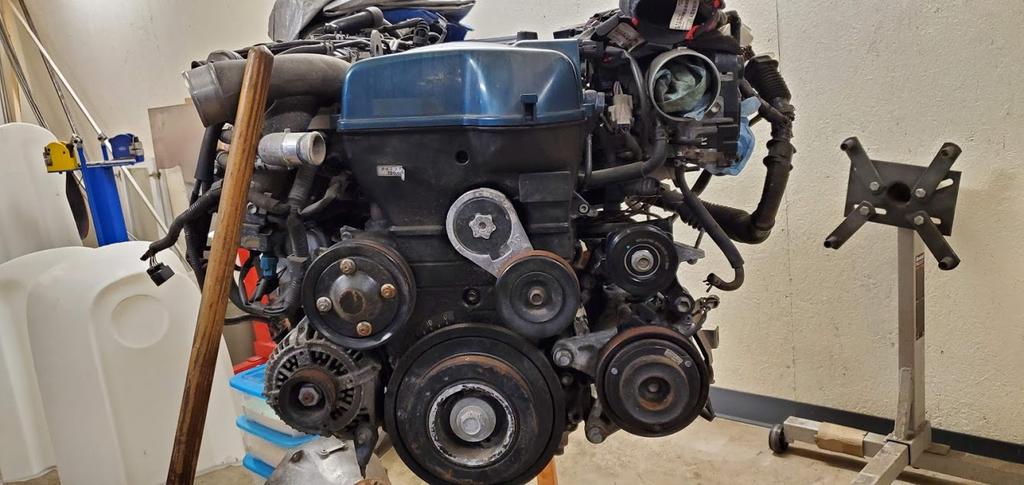

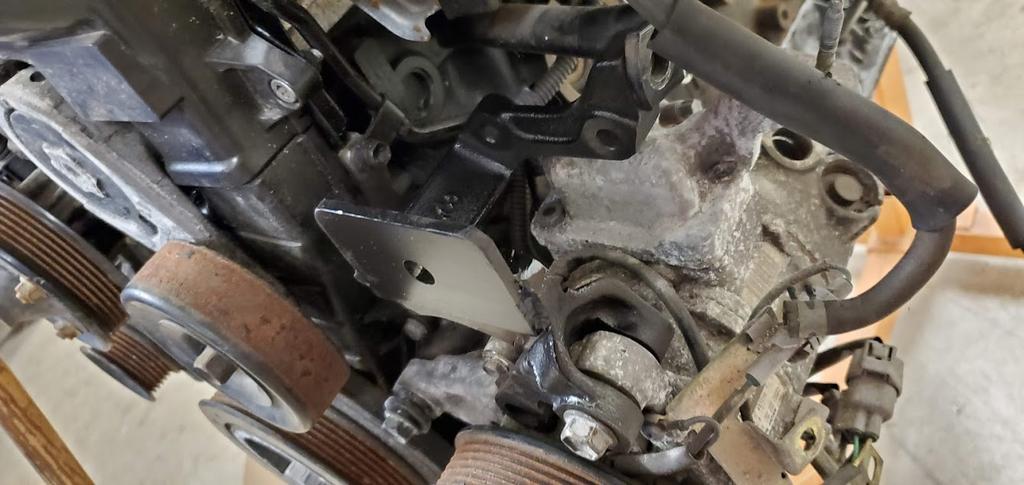

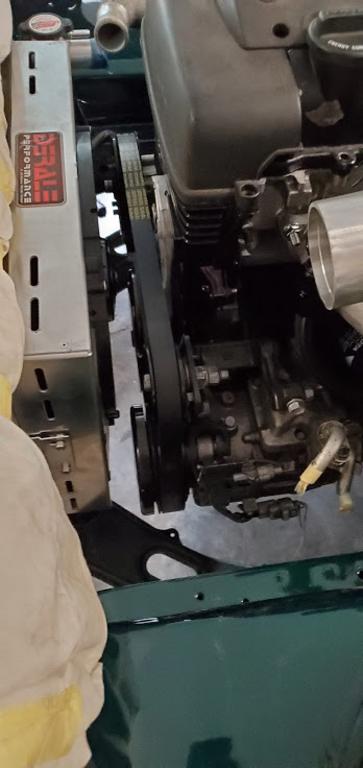

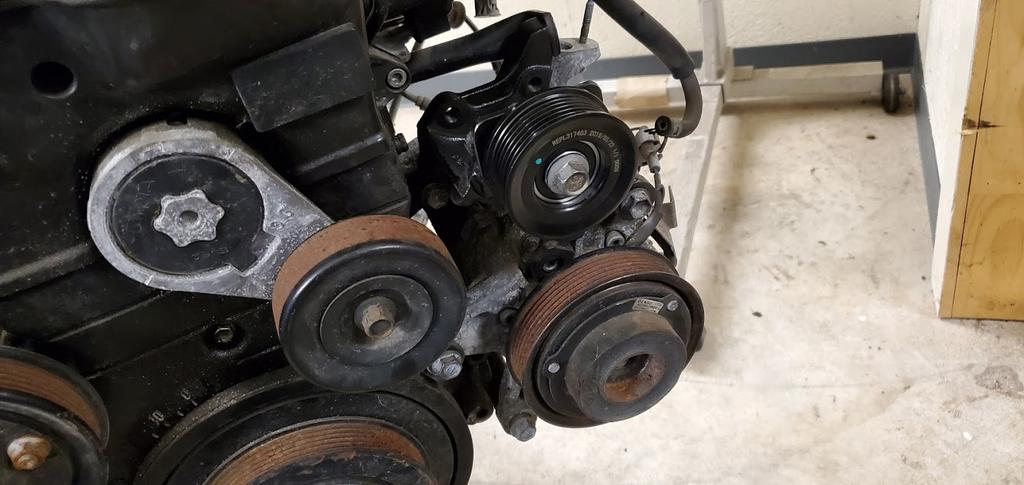

Since I'm doing the opposite of what most people do (keep A/C but delete hydraulic power steering in favor of electric PS) I needed to retain the factory belt routing but just shorten it up slightly. I built an idler pulley setup that uses the cast iron PS pump bracket but uses a much smaller pulley and sits lower for better cold pipe clearance and a tidier appearance.

https://i.imgur.com/Ru771zT.jpg
https://i.imgur.com/pyQtv85.jpg
https://i.imgur.com/TpiBWQl.jpg
https://i.imgur.com/6FloQ1c.jpg

charge pipes are next

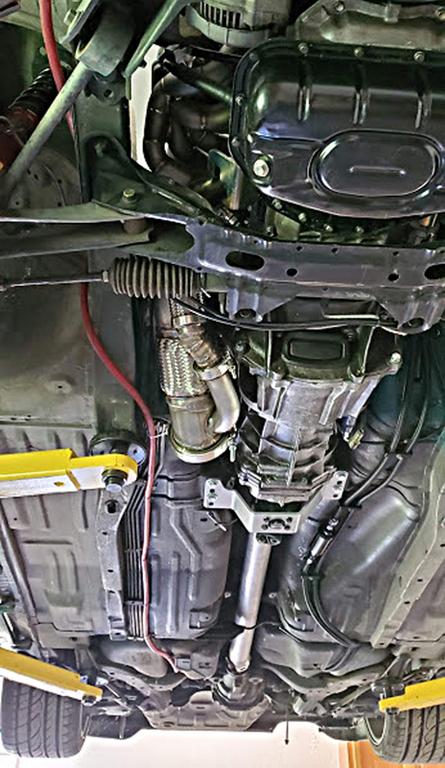

wrapped up the downpipe and WG recirc pipe.
https://i.imgur.com/LWYPuB9.jpg

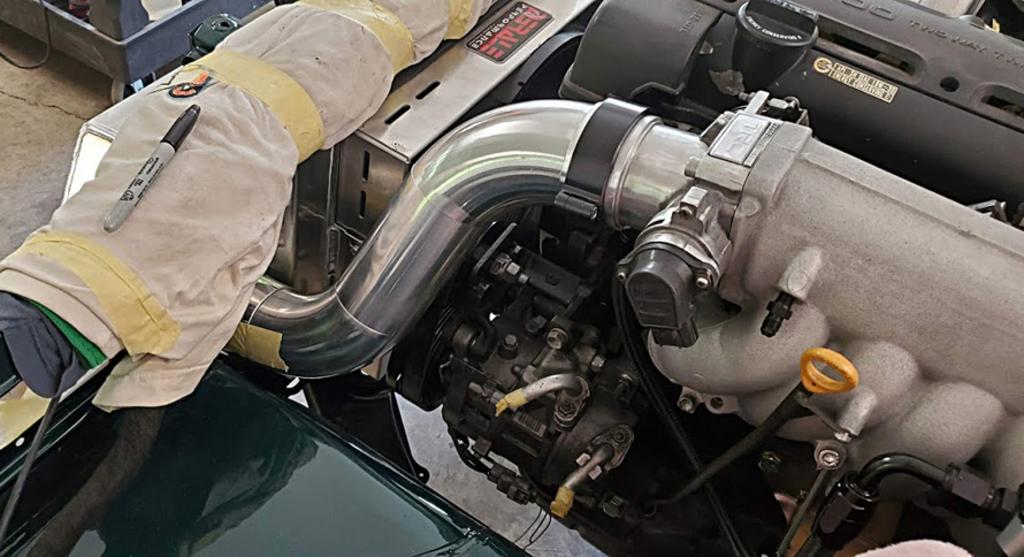

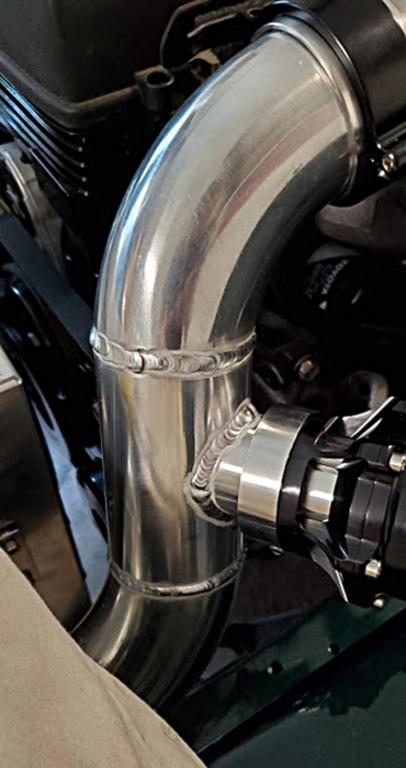

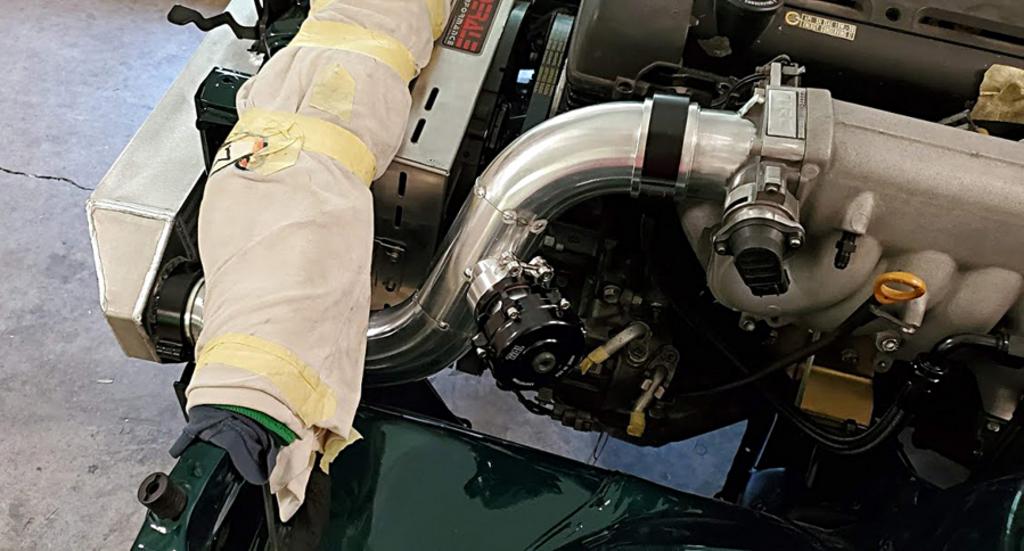

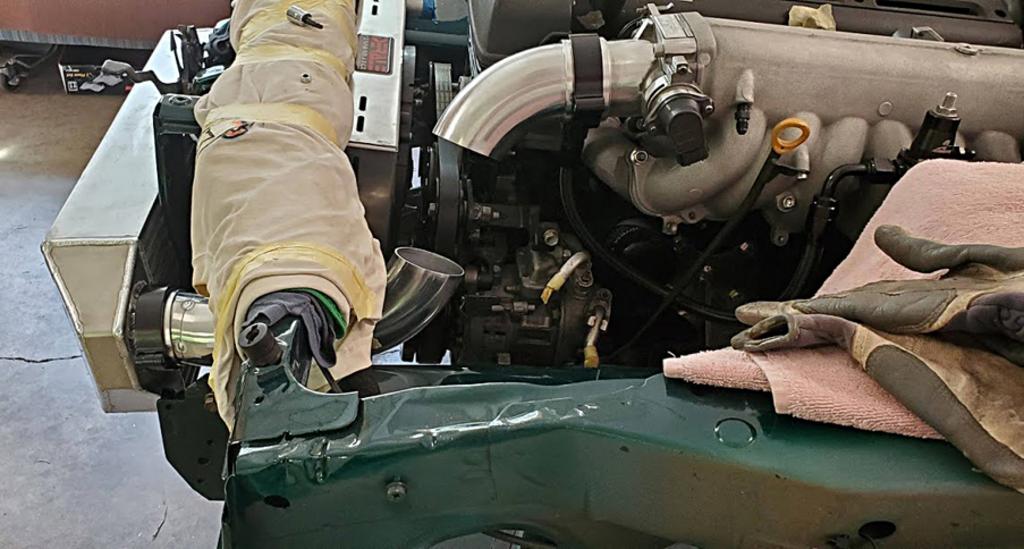

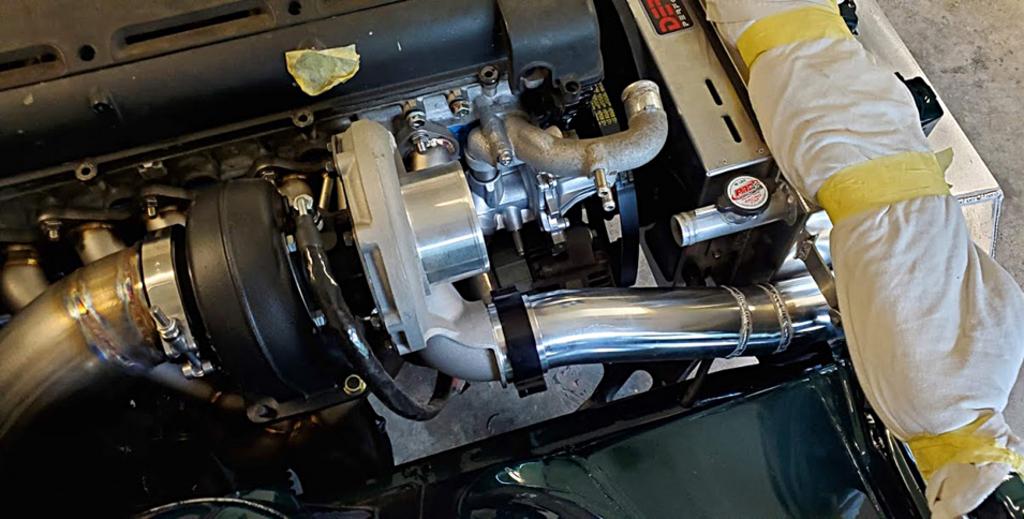

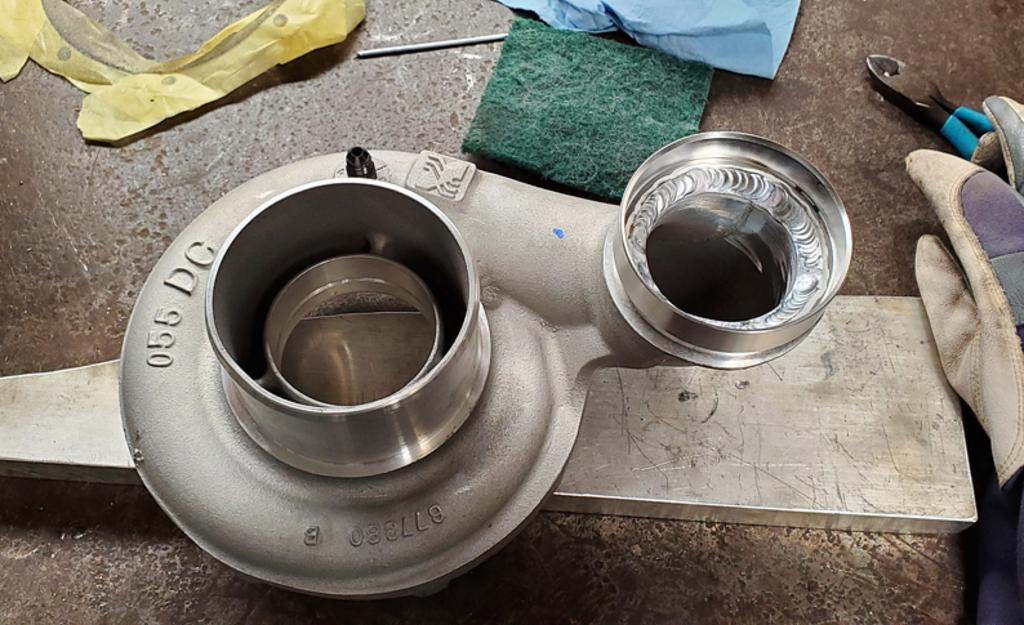

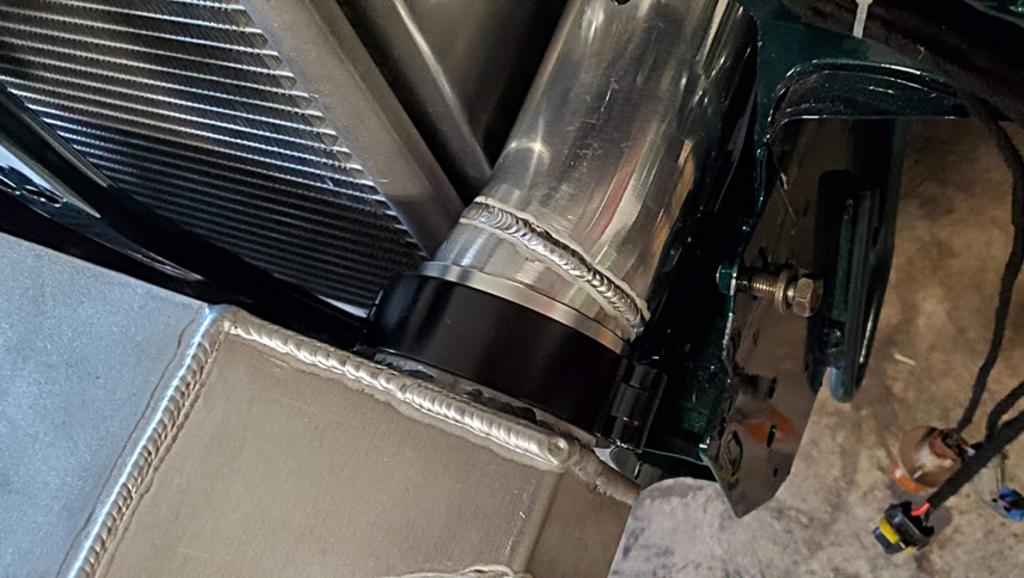

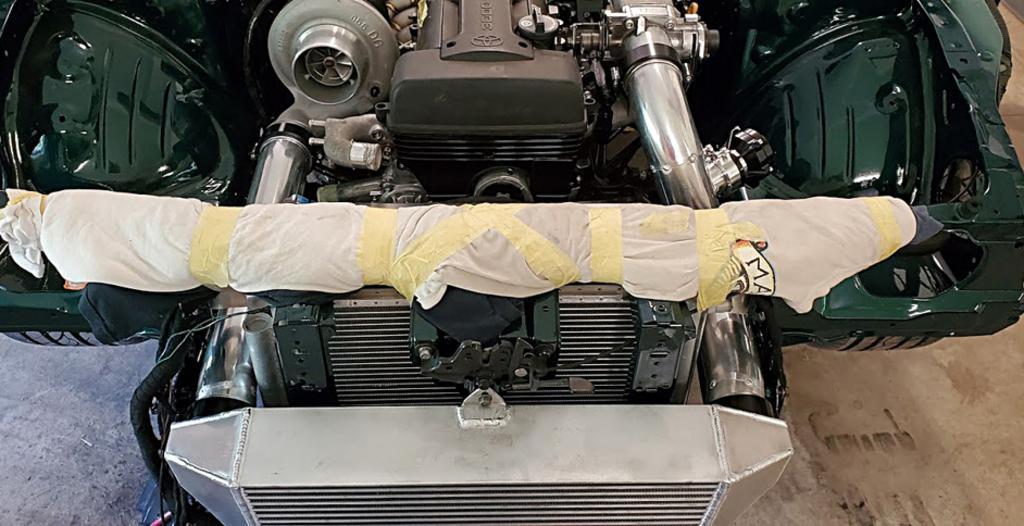

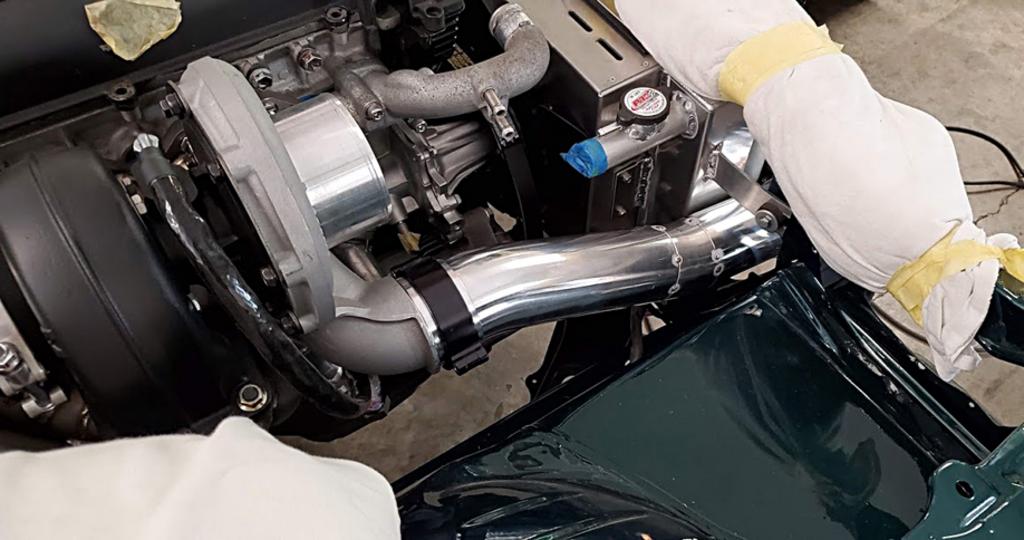

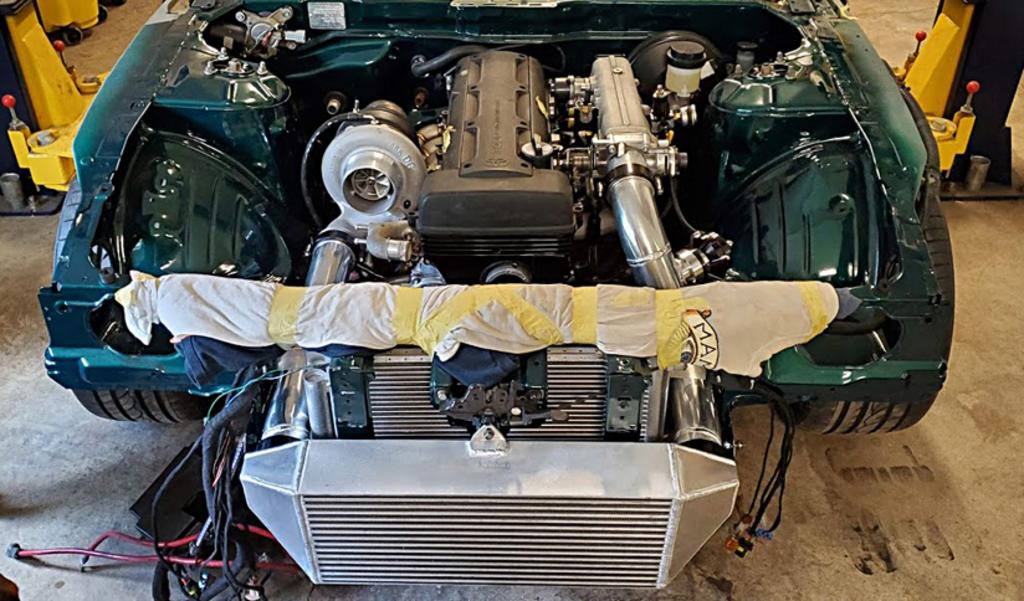

Here's the intercooler piping. I decided to weld all the ferrules for the ends of the pipes from the inside for a cleaner look.

https://i.imgur.com/ReSDTOB.jpg
https://i.imgur.com/ck5AHaC.jpg

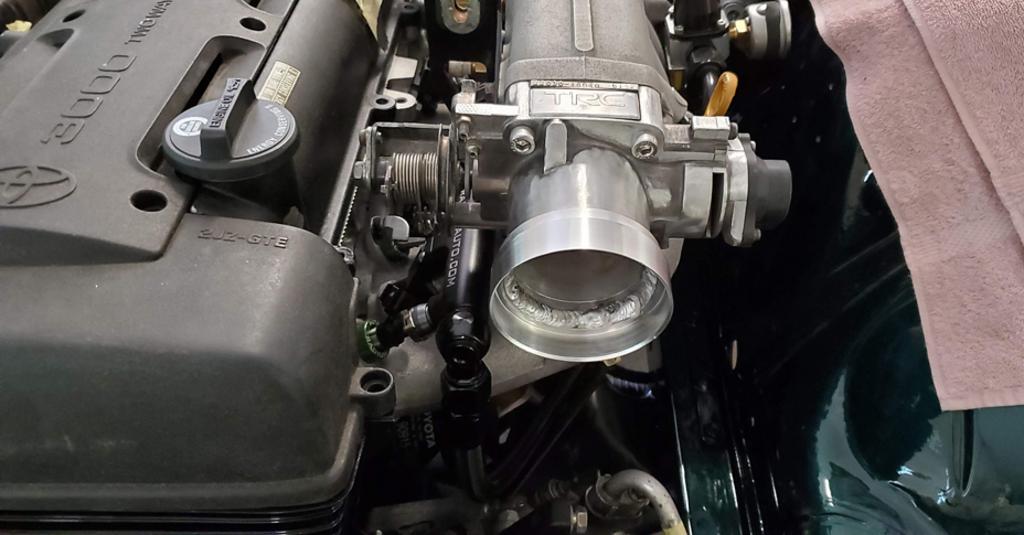

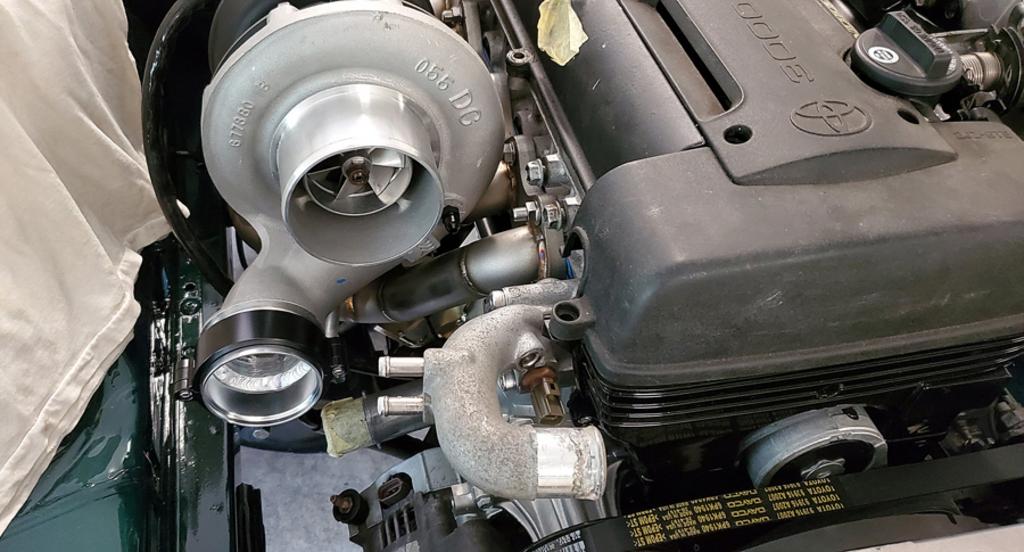

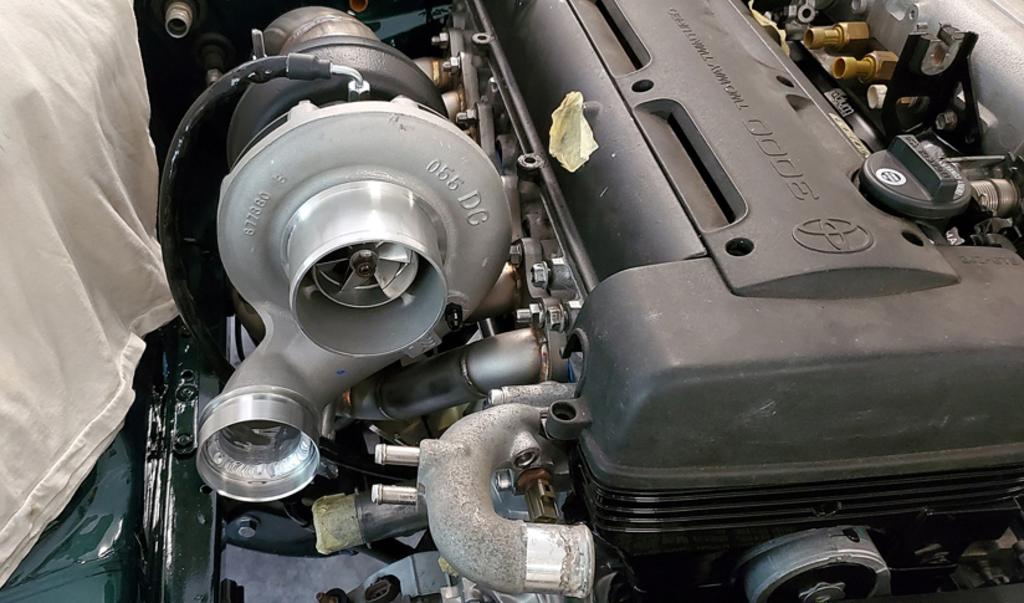

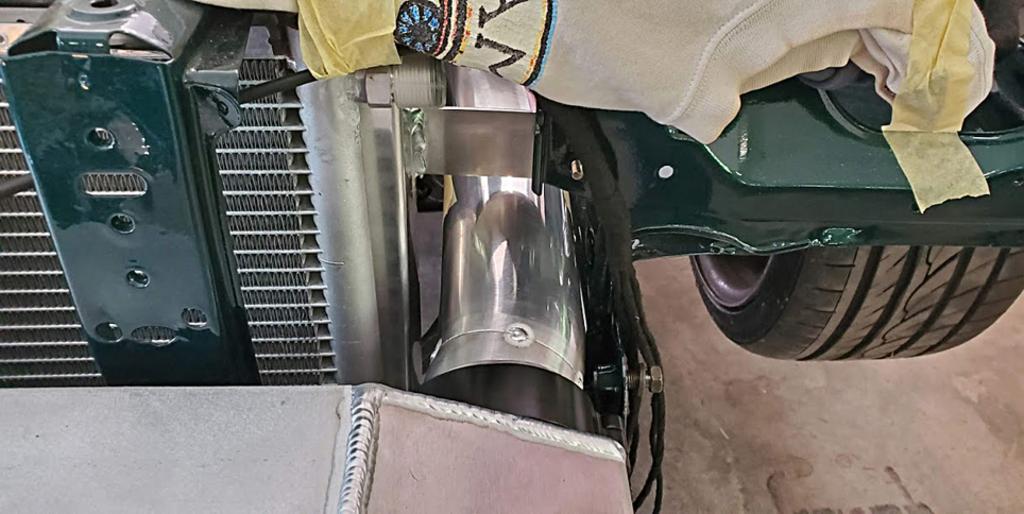

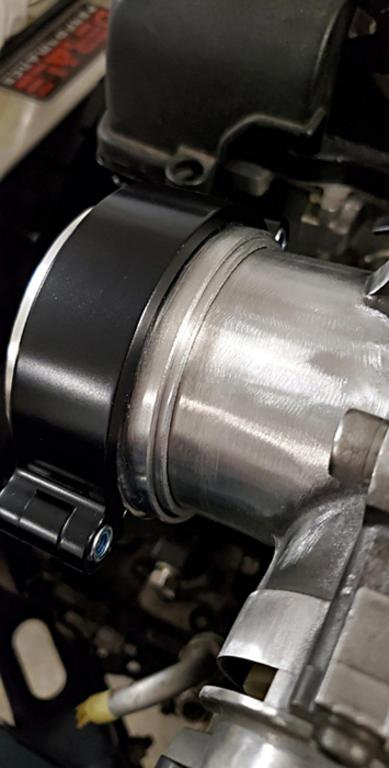

a 3" ferrule on a 2.75" throttle body means I had to sandwich a small piece of 3" od tubing between the ferrule and throttle body but it's hard to see unless you know to look for it.
https://i.imgur.com/gg7SeVF.jpg
https://i.imgur.com/7uruXnB.jpg
https://i.imgur.com/4JprXSv.jpg

https://i.imgur.com/XEQnEgf.jpg
https://i.imgur.com/V6axeYy.jpg
https://i.imgur.com/gs1y2UY.jpg
https://i.imgur.com/VrbDjVu.jpg
https://i.imgur.com/RhGbtgo.jpg
https://i.imgur.com/XEH7gzo.jpg
https://i.imgur.com/8zU9xLQ.jpg
https://i.imgur.com/CDUJAoi.jpg
https://i.imgur.com/bOJrLrH.jpg
https://i.imgur.com/Pyz9IJv.jpg

Wow that looks crazy clean. Great idea welding on the inside of those couplers


Sent from my iPhone using Tapatalk Pro

Thanks Mike!

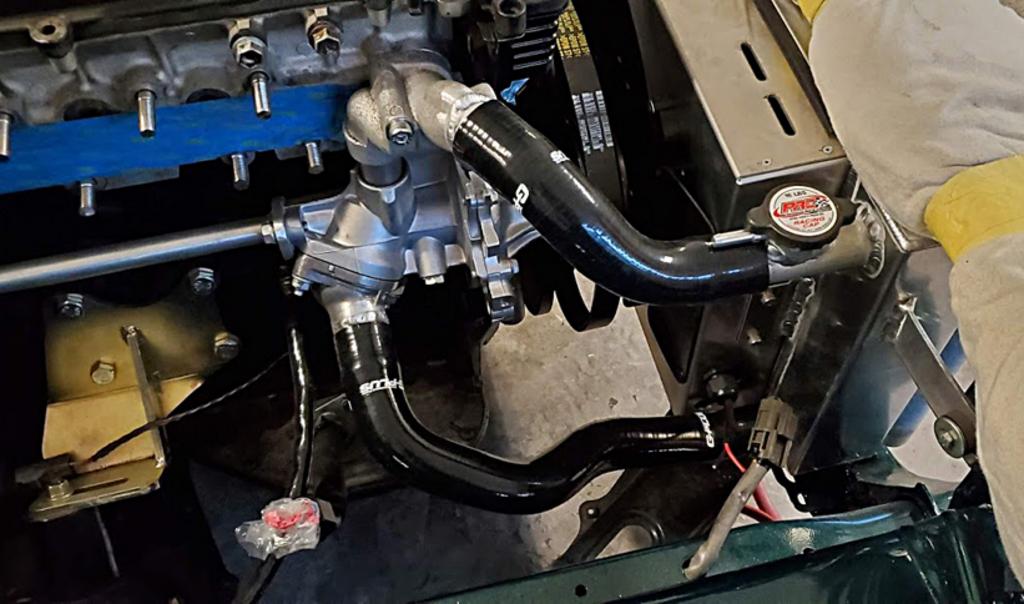

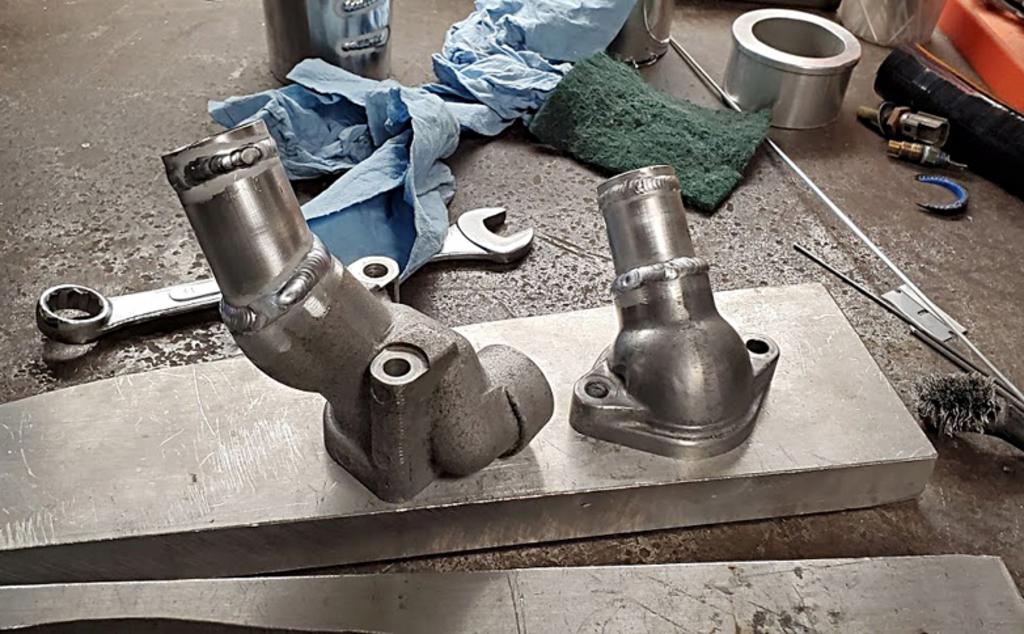

DC integra radiator hoses? Ok.

https://i.imgur.com/FzvMvND.jpg

https://i.imgur.com/LLobk8A.jpg

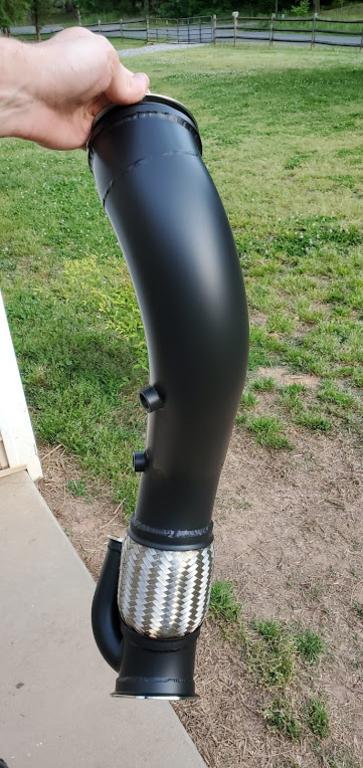

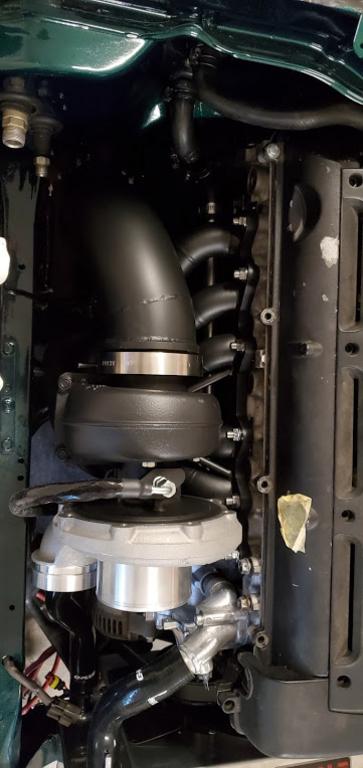

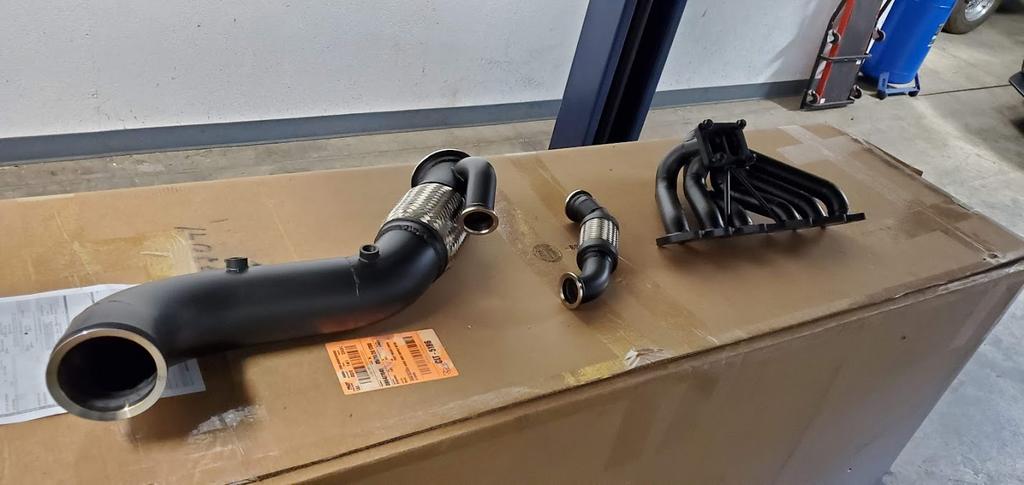

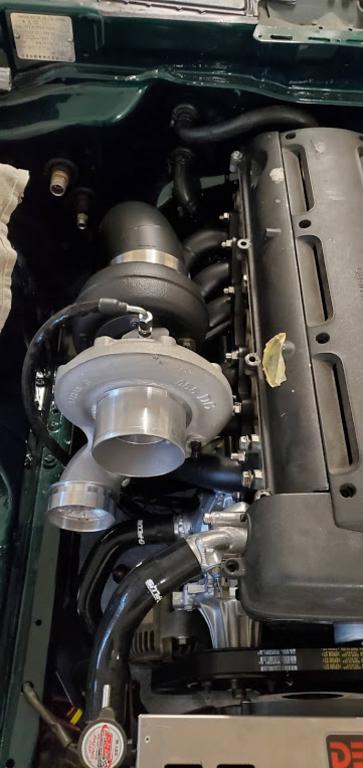

Cerakoted the exhaust parts. This was my first time using this product, shot with the "glacier black" color.
https://i.imgur.com/kYwbY1a.jpg
https://i.imgur.com/qUfJcSh.jpg
https://i.imgur.com/lkv5O5S.jpg
https://i.imgur.com/Lucwi8D.jpg
I know the valve covers and coil cover look horrible! I'm getting to that soon.

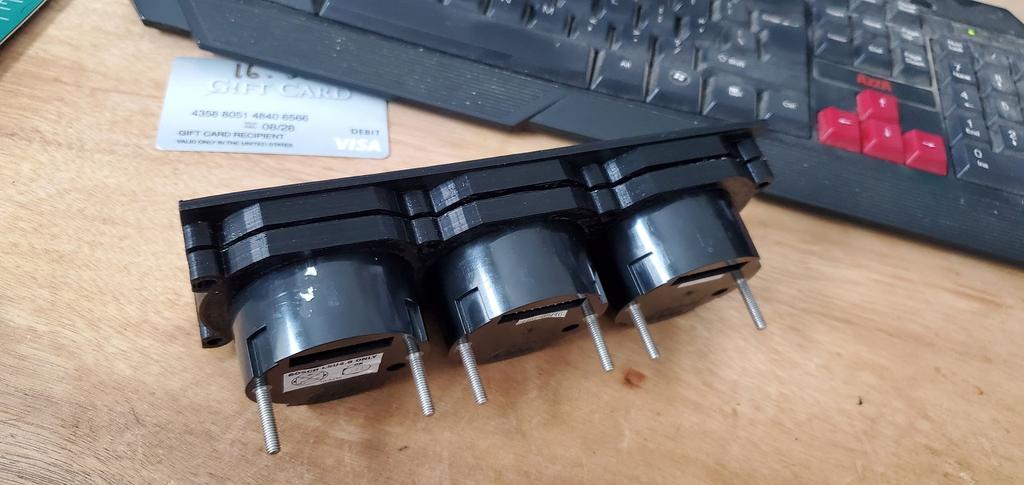

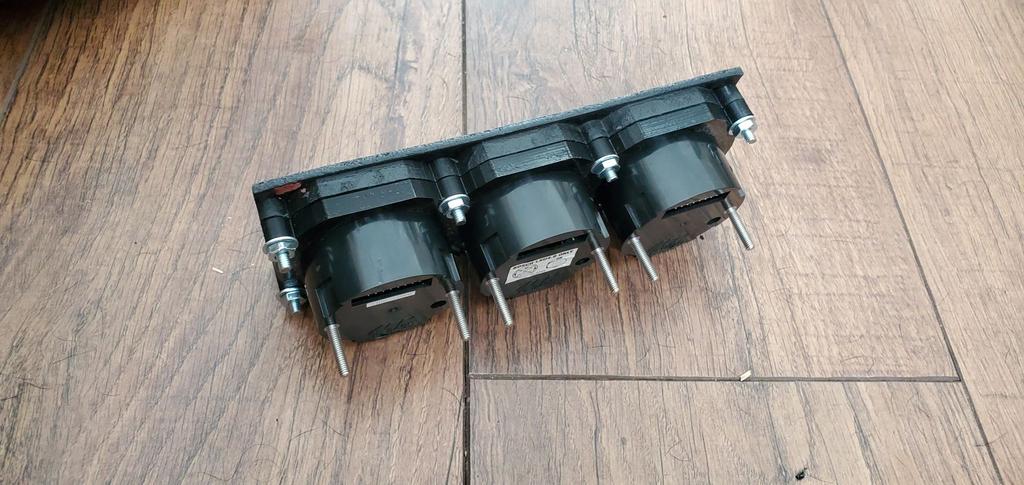

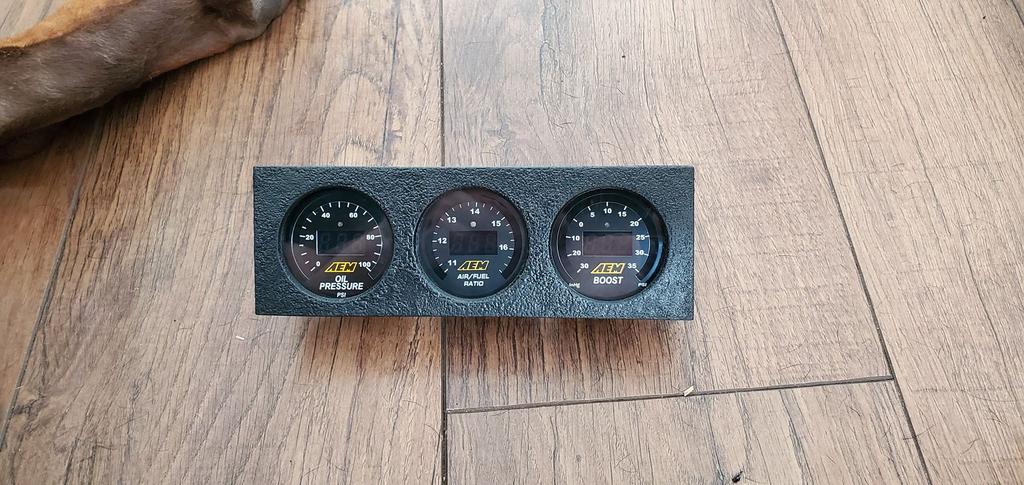

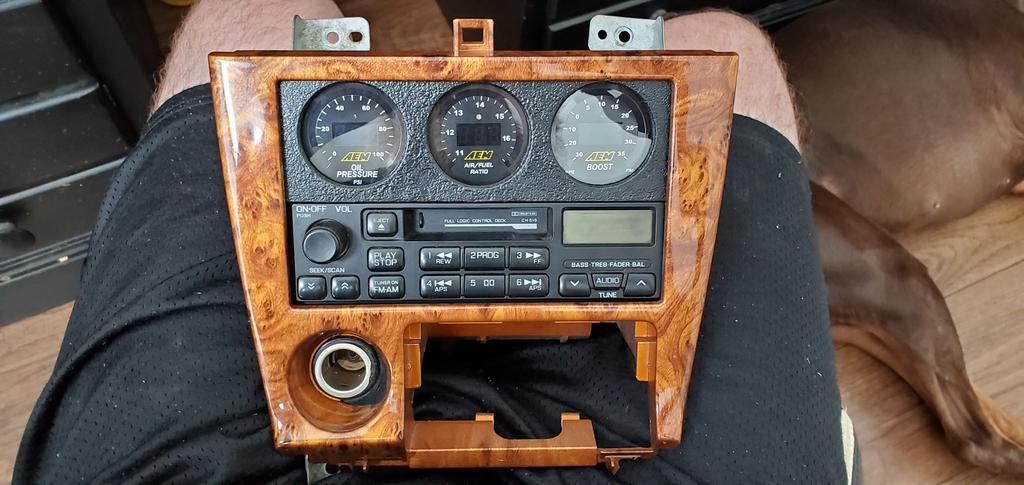

I also 3d printed a small din housing to hold the AEM gauges. The bulky bezels look so out of place in a 90s car IMO.
https://i.imgur.com/b3TsQeu.jpg
https://i.imgur.com/76JQrdw.jpg
https://i.imgur.com/IRrRYjK.jpg
https://i.imgur.com/CcpBrv8.jpg

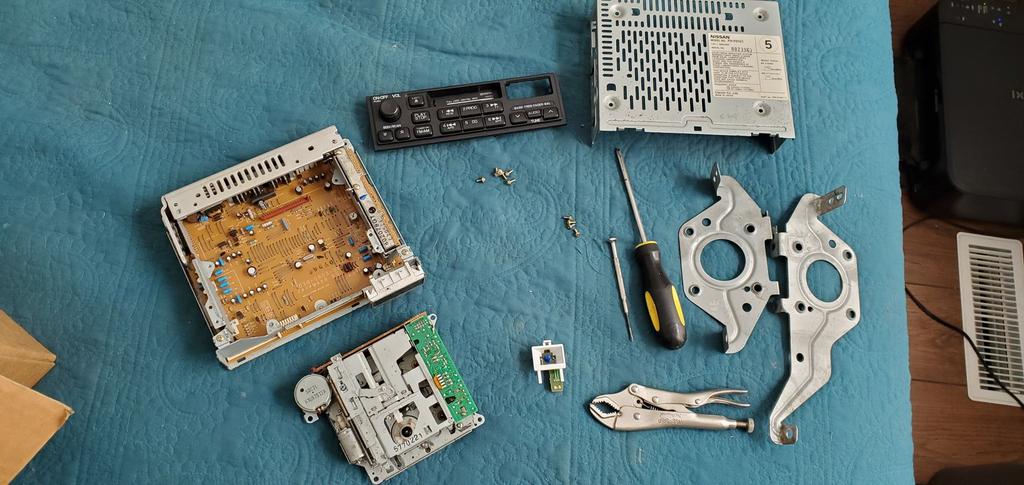

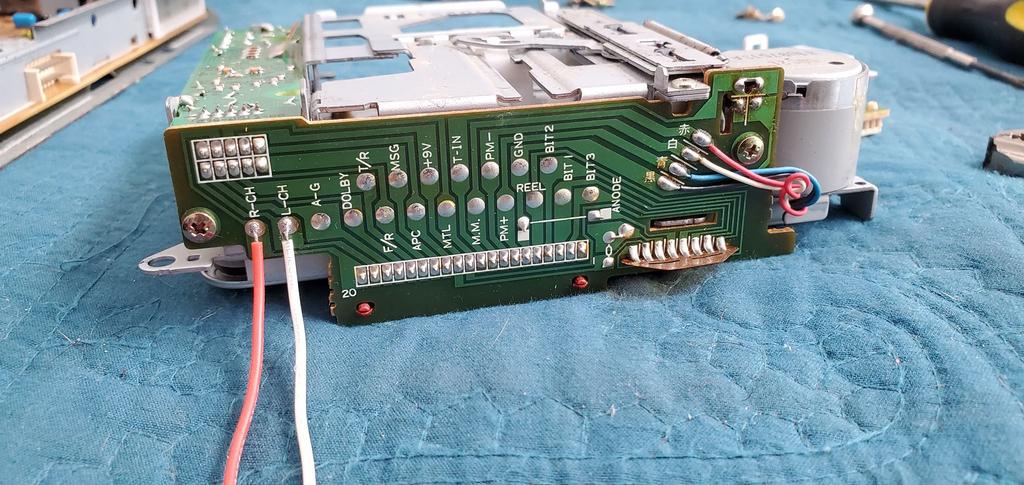

The sound quality from the factory tape deck is not great, but I love the look, and for how much I use the car this should be just fine. I decided to convert it to bluetooth/hands free by hijacking the L and R channels from the tape deck.
https://i.imgur.com/YTIQDIN.jpg
https://i.imgur.com/h95HlPL.jpg
